Part#: 747
Overview:

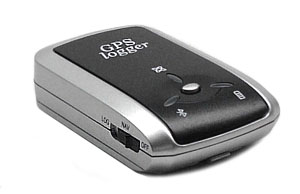

This BT GPS logger features an all-in-one, cost-effective portable GPS logging
solution. With its large on-board memory, it allows you to log your route by
setting the interval of time/ distance/ speed. Point of interest can also be
recorded by push of a button. Through user friendly utility, it shows your track
on Google Earth. This data logger is small and robust, ideal to carry everywhere
for applications such as route tracking, keeping a watchful eye on shipment or
vehicles.
Application:
-
Record your travel
-
Manage business trip
expense
-
Raise fleet
efficiency, reduce time spent at unauthorized location
-
Concerned about
one's driving behavior
-
Record point of
interest by push of a button
Features:
-
MTK Chip set
-
Embedded with a 16MB serial Flash ROM. memory for 100,000
way points record.
-
Come up with a push
button to perform manual log
-
Dual mode for both Data record and Navigation.
-
32 channels "All In
view" tracking
-
-158 high
sensitivity for urban canyon and foliage environment
-
Fast acquisition
Cold/Warm/Hot start time: 39/36/1 seconds (open sky)
-
Support Standard
NMEA-0183 V3.0 at 4800 up to 115200 bps baud rate
-
GGA/GSA/GSV/RMC(Default
output), VTG/GLL (optional)
-
Suport most NMEA
compliant software (Navigation software not included)
-

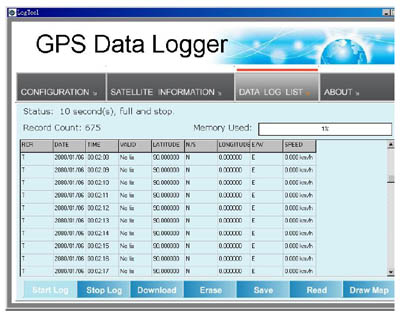

User can record the data by setting the interval of time, distance
and speed.
-
The recorded data can be played as track on the Google Map.
Specifications:
|
Category |
Parameter |
Description |
|
General |
Chip Set |
MTK |
|
Frequency |
L1,1575.42 MHZ |
|
C/A Code |
1.023 MHZ |
|
Datum |
WGS84 |
|
Sensitivity |
Better than -158dBm |
|
Satellite Tracking Count |
32 |
|
Performance Characteristic |
Position Accuracy |
Without aid: 3.0m 2D-RMS
<3m CEP(50%) without SA(horizontal)
DGPS (WAAS, EGNOS, MSAS):2.5m |
|
Velocity Accuracy |
Without aid: 0.1m/s
DGPS (WAAS, EGNOS, MSAS): 0.05m/s |
|
Acceleration |
Without aid: <4g
DGPS (WAAS,EGNOS,MSAS): <4g |
|
Timing Accuracy |
50 ns RMS |
|
Reacquisition Time |
<1s |
|
Hot start |
1s |
|
Warm start |
33s |
|
Cold start |
36s |
|
Sensitivity |
Acquisition: -144dBm
Tracking: -158dBm |
|
Update |
1Hz |
|
Dynamic |
Altitude |
Maximum 18,000m |
|
Velocity |
Maximum 515m/s |
|
Acceleration |
Maximum 4g |
|
Power |
Input Voltage |
Vin: DC 3.0-5.0V |
|
Power Consumption |
42 mA |
|
Battery |
Built-in rechargeable
1000mAH Lithium battery |
|
Protocols |
GPS Output Data
|
Baud rate 115200 bps, Data bit: 8,
Stop bit: 1 (Default) |
|
NMEA 0183
v3.01(Default: GGA, GSA, GSV, RMC;
Optional: VTG, GLL) |
|
Environment |
Operating Temperature |
-10 ~ 60˘XC |
|
Storage Temperature |
-20 ~ 60˘XC |
|
Charging |
0 ~ 45˘XC |
|
BT |
Standard |
Fully compliant with
Bluetooth V1.2 |
|
Output Power |
0dBm (Typical),
ClassII |
|
Range |
Up to 15 meters |
|
Bluetooth Profile |
Serial Port
Profile(SPP) |
|
Frequency |
2.4G ~ 2.4835GHz ISM
Band |
|
Security |
Yes |
|
USB Bridge |
Standard |
Fully compliant with USB2.0 |
|
Full - speed |
12Mbps |
|
Dimension |
|
46.5 x72.2 x20 mm |
|
|
|
Applications
-
Automotive
-
Fleet management/Asset tracking
-
Personal/Portable Navigation (PDA, Pocket PC
etc.)
-
Location Based Services enabled devices
-
Sports and Recreation
-
Geographic Surveying
System
requirement: For installing and using logger, the driver come with
it only works for Window 2000/XP. Driver doesn't support Mac and
Linux

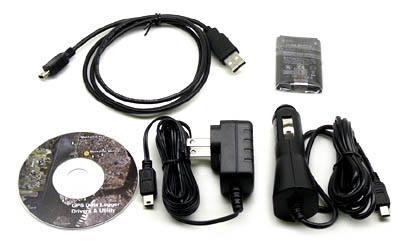

Components
- i-Blue 747 GPS Receiver
- Rechargeable battery
-
Travel charger & Car charger (with USB
interface)
-
user's guide.
-
CD-Rom
-
USB to mini-USB cable
Warranty: 30 day manufacture defect only. |
