Part#: 757 Pro
iBlue 737/747/757 series
FAQ
Download:
Overview:

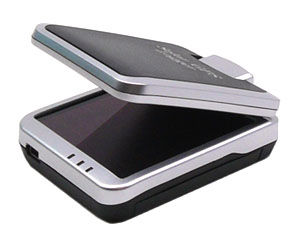

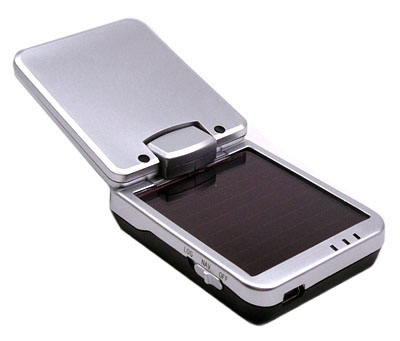

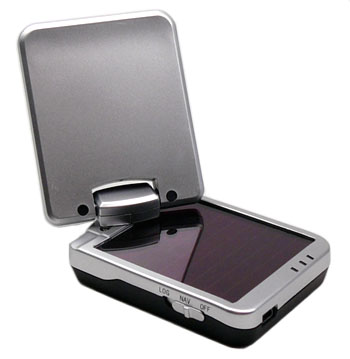

This BT GPS logger features an all in
one, cost effective portable GPS logging solution. With its on-board memory, it
allows you to log your route. Through user friendly utility, it shows your track
on Google Earth. Thanks to the Solar energy the receiver can be used for more
than 100 hours in full operation or permanent in standby mode.
Application:
-
Record your travel
-
Manage business trip
expense
-
Raise fleet
efficiency, reduce time spent at unauthorized location
-
Concerned about
one's driving behavior
-
Record point of
interest by push of a button
Features:
-
MTK Chip set
-
Dual power (Battery + Solar Energy)
-
More than 100 hrs operating time in direct sun
-
Fuzzy Auto On/Off
-
Embedded with a 16MB serial Flash ROM. memory for 100,000
way points record.
-
Come up with a push
button to perform manual log
-
Dual mode for both Data record and Navigation.
-
32 channels "All In
view" tracking
-
-158 high
sensitivity for urban canyon and foliage environment
-
Fast acquisition
Cold/Warm/Hot start time: 39/36/1 seconds (open sky)
-
Support Standard
NMEA-0183 V3.0 at 4800 up to 115200 bps baud rate
-
GGA/GSA/GSV/RMC(Default
output), VTG/GLL (optional)
-
Suport most NMEA
compliant software (Navigation software not included)
-
User can record the data by setting the interval of time, distance
and speed.
-
The recorded data can be played as track on the Google Map.
Specifications:
|
Category |
Parameter |
Description |
General |
Chip Set |
MTK |
|
Frequency |
L1,
1575.42 MHz |
|
C/A
Code |
1.023
MHz chip rate |
|
Channels |
32
CH for tracking |
|
Antenna |
Built-in
patch with LNA |
|
Datum |
WGS-84 |
Acquisition |
Cold
start |
36
sec, average |
|
Warm
start |
33
sec, average |
|
Hot
start |
<1
sec, average |
|
Reacquisition |
<1sec |
Dynamic |
Altitude |
<18,000m |
|
Velocity |
<515m/sec |
|
Acceleration |
4g
max. |
Protocol |
GPS
Output |
NMEA-0183
(V3.01) – GGA, GSA, GSV, RMC (default) |
|
GLL,
VTG (optional) |
|
Data
bit : 8, stop bit : 1(Default) |
Interface |
Bluetooth™ |
Version 1.2 compliant |
|
Output
Power |
Class
2 (10 meter in free space) |
|
Frequency |
2.4
to 2.48 GHz |
Power |
Battery |
Rechargeable
1000mAh Lithium battery |
|
Current |
25mA
without Solar Panel |
|
Work
Hours |
40hrs
without Solar Panel;100+ hrs with Solar Panel |
|
Standby
Time |
Permanent
in direct sun |
|
DC
Input |
3.2-4.5V |
|
Power
Charge |
Mini
USB |
Physical |
Dimensions |
80
x 61 x 25 mm |
|
Weight |
105g
|
Others |
Certification |
CE
/ FCC |
|
LED |
Bluetooth,
Navigation, Battery / changer status |
| |
|
Solar
Cell Specifications |
Minimum
operating voltage, Vop (with 150
load)
|
4.5V |
Maximum
operating current, Iop (with 150
load)
|
30.0mA |
*Bluetooth
is a trademark owned by Bluetooth SIG, Inc.
*Specifications subject to change without prior notice. |
Applications
-
Automotive
-
Fleet management/Asset tracking
-
Personal/Portable Navigation (PDA, Pocket PC
etc.)
-
Location Based Services enabled devices
-
Sports and Recreation
-
Geographic Surveying
System
requirement: For installing and using logger, the driver come with
it only works for Window 2000/XP. Driver doesn't support Mac and
Linux

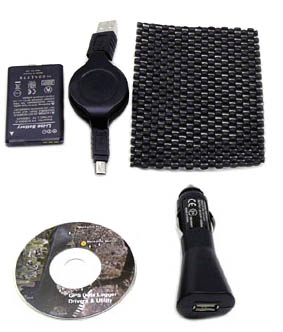

Components
- i-Blue 757 Pro Solar GPS Data Logger Receiver
- Rechargeable battery
-
Car charger (with USB
interface)
-
user's guide.
-
CD-Rom
-
Retractable USB to mini-USB cable
-
Anti-Slip Pad
Warranty: 30 day manufacture defect only. |
