Part#: GP-HDS001





Overview:

     The Hi-Speed USB 2.0+eSATA to Serial ATA (SATA) 2.5" and 3.5" hard drive creates a bridge between USB 2.0+eSATA and SATA HDD mass storage device port. The docking station turns any SATA hard drive into a convenient external drive. Easily transfer files from computer or notebook, back up files, or store large file archives on hard drives. the docking station provides for easy installation with its Plug and Play design.

Features:

• Access any 2.5"/3.5"'/5.25" SATA drive through Hi-Speed USB 2.0 port or eSATA
• Compatible with any 2.5 and 3.5" SATA drives of any brand or any size.
• 2A AC power supply to ensure enough power for the most power-consuming drives
• Plug and Play. Hot swapping
• Windows 98SE/ME/2000/XP/Vista/7. Mac OS X (Driver ONLY necessary for Windows 98SE).

Specs:

• Black housing
• Fits 2.5-inch and 3.5-inch SATA hard drives (not simultaneously)
• Built-in 2-port USB 2.0 Hub
• Built-in Card Reader
• eSATA transfer rate up to 3.0 GB/s
• USB 2.0 transfer rate up to 480 Mbps
• Hot Swap support
• Supports SATA Spread Spectrum Clock

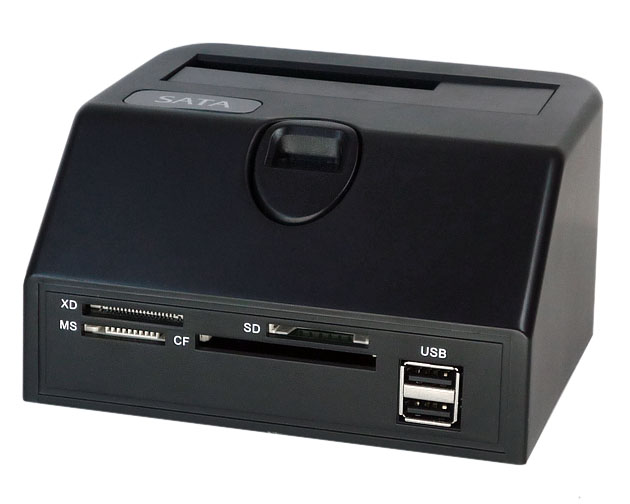

  Supported Memory Cards:
• CompactFlash
• MS (Memory Stick)
• SD (Secure Digital)
• xD

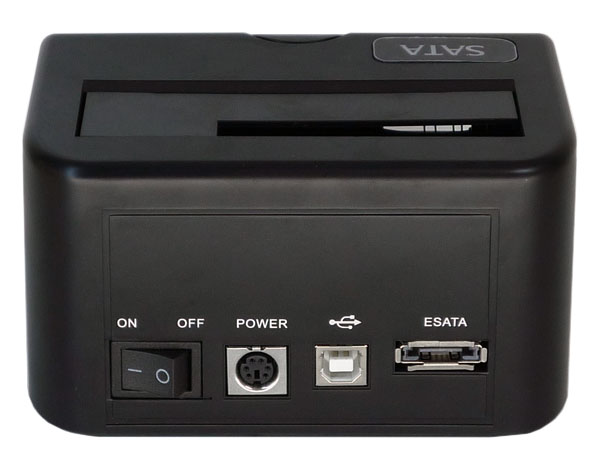

  Rear Panel Features:
• One (1) eSATA port
• One (1) mini-B USB 2.0 port
• On/Off Switch

  Dimensions:
• 2.3 x 5.1 x 3.1-inches (H x W x D, approximate)

  Regulatory Approvals:
• FCC
• CE

Product Requirements

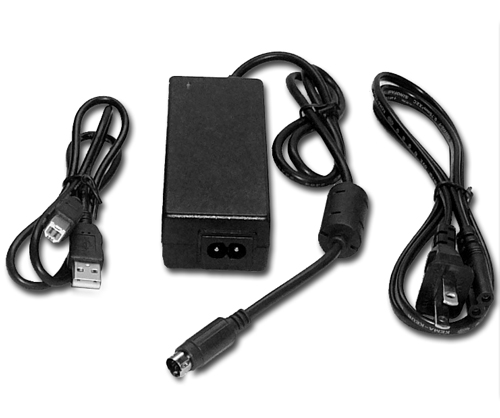

Package Contents:

• 2.5"/3.5" USB 2.0/eSATA HDD Dock with Built-in USB Hub & Card Reader
• Power Adapter (100 - 240V 50/60 Hz)
• USB cable
