Brand New in Retail
Box
Aluminum Casing! Better Material

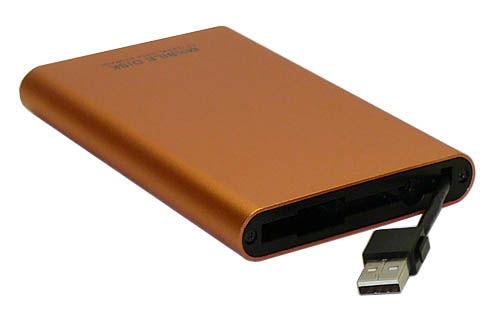

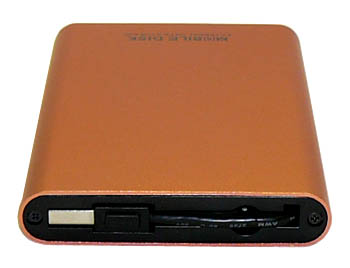

2.5" USB 2.0 Portable External SATA HDD Enclosure Case w/Built-in USB 2.0
Cable
+
Extension USB Cable
+
Blue LED Light
For MAC
and PC
Color:
Orange
Part#:
HD-210-U2S
Overview:
HD-210-U2S
is designed to meet the popular 2.5¡¨ SATA HDD in the market. Hanger retail-box
enclosed, HD-210-U2S is set to attract the eyes of user at a glance. HD-210-U2S
endeavors top quality design in rigid aluminum. Slim trimming, make HD-210-U2S a
fine piece of storage device at the hand of users. With internal connector for
SATA, users connect 2.5¡¨ SATA HDD, which takes simple steps to create a high
speed / high capacity HDD right away. If you are a business traveler or a
professional user on the go, you need an external storage system that can work
as hard as you do. HD-210-U2S made with the built-in USB 2.0 cable design, easy
to use. Integrated USB cable brings conveniences to travel without AC adapters
or messy USB cables. HD-210-U2S is equipped with USB 2.0 to support up to 480
Mb/sec transfer speed. As with all USB 2.0 systems it is also backward
compatible to the USB 1.1 speed. Hot swappable plug and play is the key feature
to the convenience of this storage device.
Features and support:
- Universal fitting for 2.5¡¨ SATA HDD device
- LED power and status indicator
- SATA I / II specification
- Operates at High (480Mbps) or Full (12Mbps)
speed
- SATA to USB2.0, Backward compatible to USB
v1.1
- Support for SATA devices configured either
as master or slave
- System Works with PC and MAC
Specification:
|
spec/model |
HD-210U2S
|
|
Data Transfer |
USB 2.0 up to 480Mbps (60MB/s)
USB 1.1 up to 12Mbps (1.5MB/s) |
|
EMI Control |
CE/FCC Certified |
|
Interface/Ports |
USB 2.0 (USB1.1) 1 port (mini 5pin) |
|
RoHS Compliancy |
RoHS Approved |
|
Structure Material |
Aluminum with front and back ABS cap |
|
System Requirements |
Windows ME/2000/XP/Vista/7
Macintosh OS 9.X or above
Linux 2.4.1.0 or above |
System requirements:
-
One available USB port (either USB 1.1 or USB 2.0)
-
Mac O/S 8.6, 9.x, 10.x (please see support above)
-
Windows 98,98SE, Windows Me, 2000 XP, Vista, 7
-
One available CD-ROM drive for software installation
-
16MB RAM
Package contents
-
Aluminum USB 2.0 2.5" SATA HDD
Enclosure
-
USB Cable
-
User Manual
Warranty: 1 Year warranty.
| |
|
Support
Zone |
| For XP, please
go to control panel-->Administrative tools-->Computer Management. Under
"Computer Management," click "Disk Management," then check the
right-bottom window (scrolling down if necessary), you should see the
additional hard drive disk, right click mouse on it, choose "new
partition", then follow the instructions for the format of the hard
drive. After finishing the format, you should be able to see the
additional drive under my computer icon on the desktop. If you are
still can't get it to work, it doesn't mean the external HDD doesn't
work or is defective. Please contact us by email or phone, we are here
to help you to solve the problem.
Still not working? Try on another computer, and
see if other computer detects the new hardware. Also, please download
the USB 2.0 service pack from
www.microsoft.com.
Tips:
- Try to adjust the jumper on the HDD and try
again.
- Reboot the computer
- Please do try on another computer, many
problems are caused by the busted USB port on the computer
- Redo the format and repeat the trouble
shooting above
|
|
