Part#: CD-SL03-BD
Panasonic

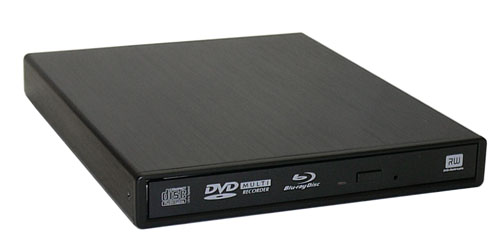

UJ-120, 12.7mm tray-type BD-ROM Combo Drive, UJ-120 not just BD-ROM
read-only. It also supports all formats and burning functions of
CD/DVD/DVD-RAM. The Blu-ray disc format offers 5 to 10 times more
storage than DVD, meaning 25 to 50 GB of data can be stored on a single
Blu-ray disc. Blu-ray drives will lead the way for next generation data
and high definition movie storage.
System
Requirement:
Features:
Read Speed
- DVD-ROM :Max 8X CAV
- BD-ROM :Max 2X CLV
- CD-ROM :Max 24X CAV
Write Speed
- CD-R :8X CLV
- CD-RW :4X CLV
- High Speed CD-RW :8XCLV
- Ultra Speed CD-RW :No Support
- DVD-R :Max.8X Zone CLV
- DVD-R DL :2X CLV
- DVD-RW :Max.4X Zone CLV
- DVD+R :Max.8X Zone CLV
- DVD+R DL :2.4X CLV
- DVD+RW :Max.4X Zone CLV
- DVD-RAM :3X-5X ZCLV ( 4.7GB)
- Support Buffer
Underrun Free Recording (SmoothLinkTM)
Drive
Specification:
|
(Panasonic)UJ-120 |
|
|
Loading Type |
Tray type loading |
|
Interface |
ATAPI(IDE) |
|
System Interface |
Data transfer speed -Max. 33.3
MB/s (UDMA Mode 2) |
|
Power Consumption |
Typical- 1100 mA |
|
Acoustic noise |
Operating (Sound pressure level,
typical)- Less than 50dBA at 0.25m away from bezel and 0.45m
heights away |
|
Power supply |
Voltage-DC5V +/-0.25V |
|
Temperature |
Operating C (F)-5 ~ 50°C (41 ~
122°F) |
|
Temperature |
Non-operating C (F)-30 ~ 60°C
(-22 ~ 149°F) |
|
Relative Humidity |
Operating (No condensation)-10 ~
90% |
|
Relative Humidity |
Non-operating (No condensation,
Power Off, without disc)- 5 ~ 95% |
|
Altitude |
Operating m (ft)-200m ~ 3,048m |
|
Enclosure
Dimensions |
137(W)x21(H)x169(D)mm |

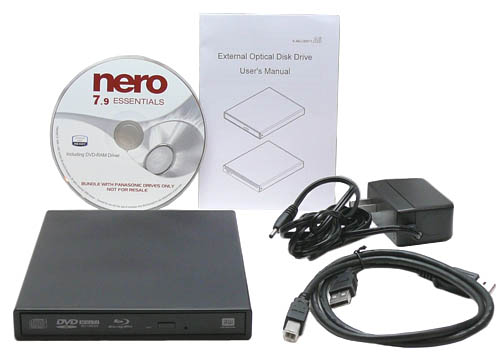

Package Contents:
- Panasonic UJ-120 Aluminum USB External
Blu-ray DVD Recorder/Burner Combo Drive Enclosure
- USB Y Cable
- AC Adapter (110~240V input, 5V 2A
output)
- Manuel
- Nero 7.9 Essentials software CD
Warranty: 1 Year
|
