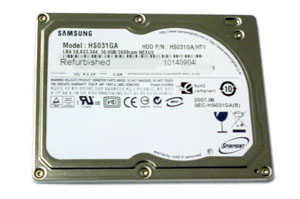

 Samsung 1.8" ZIF ATA6 30GB 3600RPM 2Mb Buffer Hard Drive
For
iPod Video 5/5.5 Gen, Music Players, Handheld PCs, PDAs, Wearable Computers and Laptops

Part#: HS031GA

Overview:

Samsung introduces a 30GB 1.8-inch embedded HDD for consumer electronic (CE) devices, the HS031GA. Enabling some of today's most exciting, small form factor mobile devices, the new mini-drives offer manufacturers significant storage for consumer, commercial and PC applications - such as music players, handheld PCs, PDAs, wearable computers and laptops. Toshiba is committed to grow with developers and users to provide smart computing solutions, backed by Samsung-renowned quality and technology leadership.

Features:

  • 30.0 Gigabytes*
  • Lightweight, only 48 grams
  • Low Power Consumption
  • 15ms Average Seek Time
  • 100MB/s Ultra DMA Transfer Rate
  • Low Insertion (LIF) Connector

*Toshiba defines a megabyte (MB) as 1,000,000 bytes and a gigabyte (GB) as 1,000,000,000 bytes.

Specifications:

Data Storage Physical:
Per drive, formatted* 30.0GB
Number of Disks 1
Number of Data Heads 2
User Data Cylinders 55,728
Logical Configuration:
Heads 16
Cylinders 16,383
User Sectors/Track at zone 0 63
Logical Blocks (LBA) 58,605,120
Data Transfer Rate:
Buffer to Host- PIO 16.6MB/sec
Buffer to Host- Ultra DMA 100MB/sec
Maximum Internal 131.1 - 283.3 Mbits/sec
Seek Time:
Track-to-track 3ms
Average 15ms
Maximum 26ms
Nominal Power Requirements:
Voltage 3.3V (???5%)
Energy Consumption Efficiency: 0.01W/GB
Power Consumption:
Start
Seeking
Reading
Writing
Idle
Standby
Sleep		 1.8watts
1.1watts
1.0watts
1.0watts
0.4watts
0.12watts
0.07watts
Other:
Rotational Speed 3600rpm
Average Latency 8.3 ms
Interface ATA 6
Buffer 2Mbytes
Physical & Environmental Specs
Dimensions/Weight:
Height 0.197" (5mm)
Width 2.12" (54mm)
Depth 2.79" (71mm)
Weight 1.7 oz (48g)
Ambient Temperature:
Operating 41??? - 140???F (5 to 60???C)
Non-Operating -4??? - 149???F (-20 to 65???C)
Shipping -40??? - 158???F (-40 to 70???C)
Vibration and Shock:
Operating Vibration 2.0G (15-500 Hz)
Operating Shock 500G/2.0ms
Non-Operating Shock 1,500G/1.0ms
Reliability Characteristics
Error Rates:
Non-recoverable 1 in 1013 bits
Seek 1 in 106 seeks
Other:
Preventive Maintenance None
Product Life 5 years or 20,000 power ON hours

Warranty: 1 year warranty.
