Part#: HT-PCIEU3N

Overview:

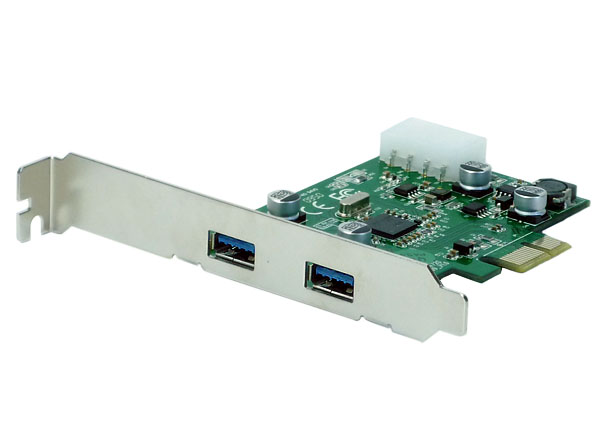

      HornetTek USB 3.0 PCI-Express card allows you to upgrade your USB 2.0 High Speed to USB 3.0 SuperSpeed 5 Mbps transfer speed. It is not only an upgrade to USB 2.0, but also backward compatible with USB 2.0 and USB 1.1. You can start saving time from transferring large files and enjoy super speed on your PC today with HornetTek USB 3.0 PCI-e Card.

Features:

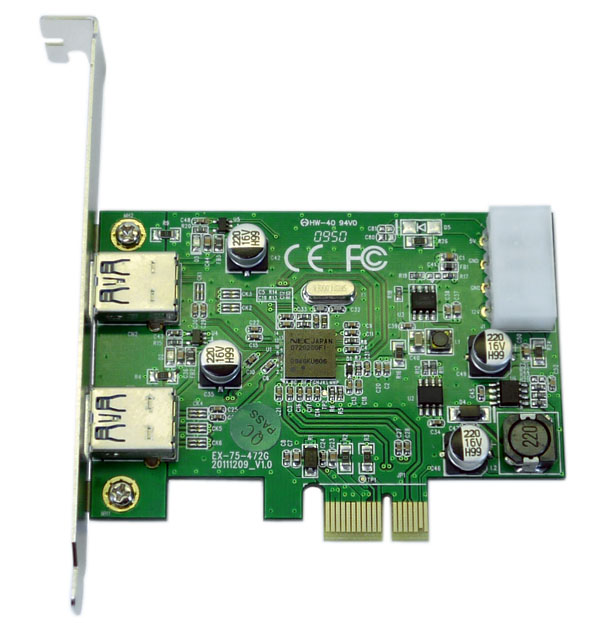

• NEC chipset
• USB 3.0 compliant
• 5 Gbps maximum data transfer rate
• Two external USB 3.0 ports (Type A)
• Support USB legacy function
• Support Low-speed 1.5 Mbps, Full-speed (12 Mbps)
• Support High-speed 480 Mbps, Super-speed (5 Mbps)
• Support 2 downstream ports for all speeds
• Compliant with PCI Express Base Specification 2.0
• Support ExpressCard Standard Release 1.0
• Support PCI Express Card Electromechanical Specification Revision 2.0
• Support PCI Bus Power Management Interface Specification Revision 1.2
• Compliant with Intel's USB 3.0 host controller interface (xHCI) specification revision 0.95
• Operational registers are direct-mapped to PCI memory space
• Support Serial peripheral interface (SPI) type ROM
• System clock: 2.4MHz crystal or 48MHz external clock
• 3.3V and 1.05V power supply
• Supports Windows 2000/ME/XP/Vista/7
• FC and CE Approved
• RoHS

System Requirements:

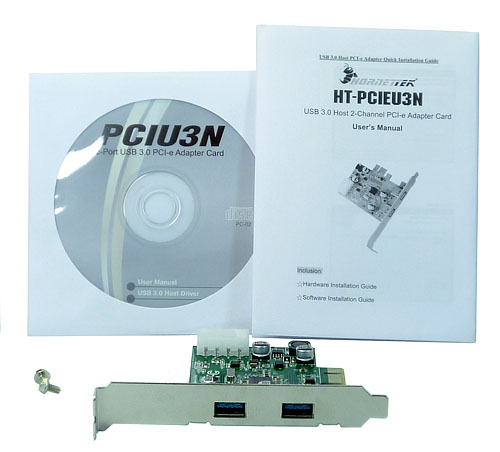

Package Contents:

• 2-Port USB 3.0 PCI Express Card
• One Driver CD
• Screw Oack
