Dimensions: 57(W) x 45(D) x 11(H) mm





Overview:
      The USB 2.0 Hi-Speed Hub is compliant with the USB 2.0 Hi-Speed specification. It has 4 ports which will connect either the new USB 2.0 Hi-Speed high performance peripherals or the legacy USB 1.1 devices. It's providing easy plug and play USB expansion. Just like USB 1.1 you can connect as many as 127 devices to your computer using multiple USB 2.0 hubs. All ports are fully supported for compatibility with bus-powered peripherals.

• Compliant with Universal Serial Bus Specification Revision 2.0.
• Root Hub with 4 downstream facing ports which are shared by OHCI and EHCI Host Controller core.
• All downstream facing ports can handle high-speed (480 Mbps), full-speed
• (12 Mbps), and low-speed (1.5 Mbps) transaction.
• Supports Plug & Play and Hot Swappable capability.
• Support Self Power Mode.
• Equips with Over-Current Detection and Protection.
• Connects up to 127 USB devices.
• Supports Windows 98SE / ME / 2000 / XP / MAC OS 8.6 or greater.
• Connectors: Four Downstream (USB A) Ports, One Upstream  (Mini USB B) Port
• USB Cable (113cm)
• 57(W) x 45(D) x 11(H) mm
• Weight 22g

• Support Self-powered and bus-powered.
• No external power required for each port device under 100mA
• Plug & Play capability with USB device.
• Compatible with USB EHCI - 480Mbps and OHCI - 12Mbps and 1.5Mbps.

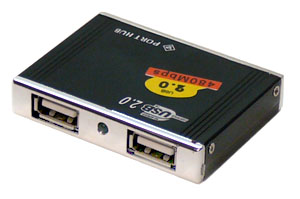

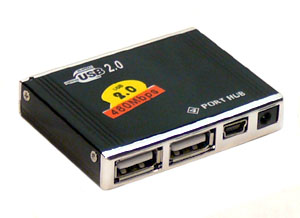

• Four USB A-TYPE FEMALE downstream port.
• One Mini USB B-TYPE FEMALE upstream port.
• One power connector.
• Support over-current detection and protection.
• 5V / 2A switch power supply.

System Requirement:

PC System Environment:

• IBM compatible Pentium 233 or faster.
• 64MB RAM.
• Microsoft Windows 98SE / ME / 2000 / XP /Vista
• Available USB 2.0 port. A USB 2.0 host controller from motherboard or host card and USB 2.0 driver with hub supported. It's required for the USB 2.0 hub to work at hi-speed mode.

• PowerMac blue or white G3 or greater, PowerBook G3 or greater, iBook or iMac
• 64MB RAM
• Mac OS 9.0 or greater
• Available USB 2.0 port. A USB 2.0 host controller from motherboard or host card and USB 2.0 driver with hub supported. It's required for the USB 2.0 hub to work at hi-speed mode.

Package Contents:

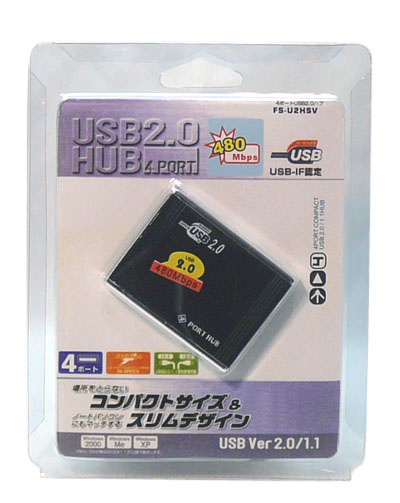

• USB 2.0 4 Ports Hub
• USB Cable (113cm)
• One Power Adapter. Input 100~240v, 50~60Hz. Output 5V / 2A

Warranty: 30 day
