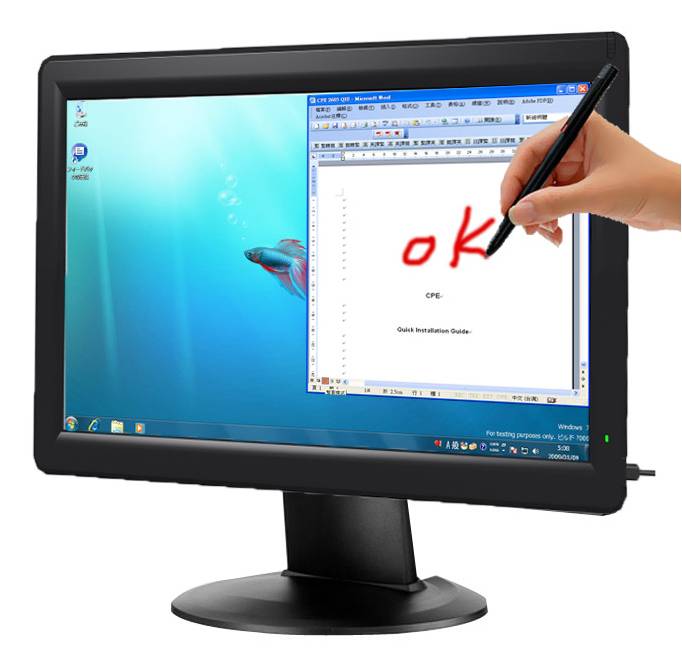

WinTouch 18.5" 16:9 Portable Touch Panel (Fit 17"~19")
Turn your LCD/TFT Monitor to a Touch Screen

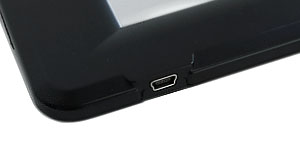

USB Interface. Plug&play
Part#: TP-185 |
Overview:
The WinTouch portable touch panel is

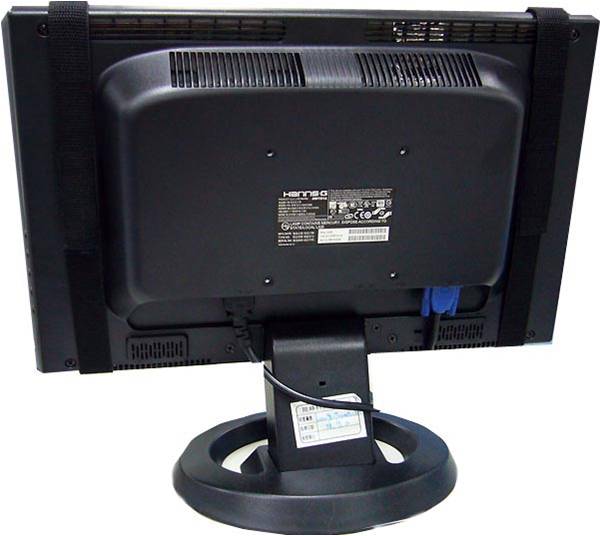

easy to install and use. Instantly convert your LCD/CRT monitor
or notebook into a touch-interactive monitor. It can be used in
numerous applications such as education, medical, digital
signature, playing games, and where easy-to-use is required in
restaurant and public places. The WinTouch can make everything
you do easier and more fun. Explore what WinTouch can do for
you....
Application:
|
Digital signature |
Switch controls |
|
 |
 |
|
Medical |
|
 |
 |
|

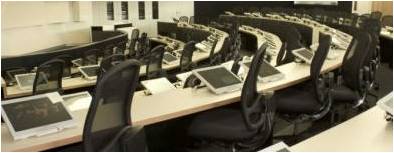

Conference |
Education |
|
 |
 |
Features:
-
All-In-One design
-
Patent pending
-

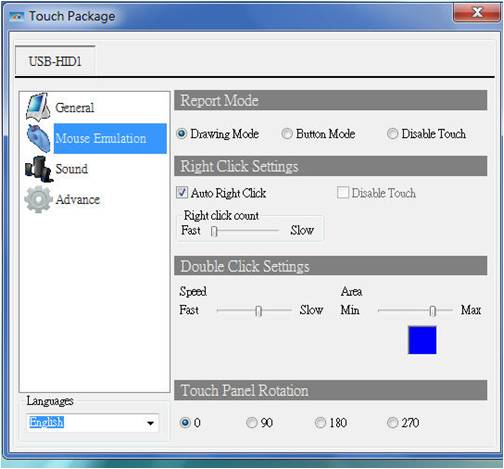

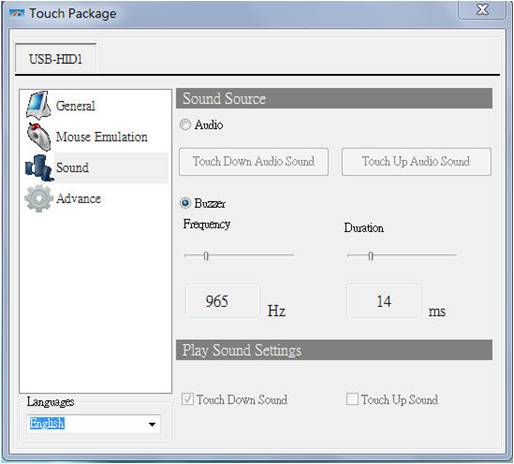

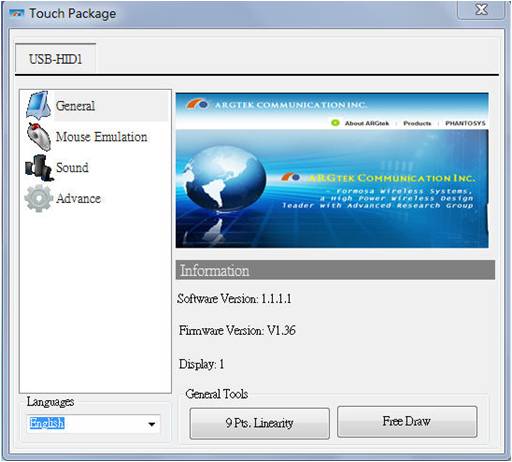

Compatible with WIN 7, Vista, Win XP, Win 2000 ( selectable )
-
4 languages Supported (English, Simple Chinese, Traditional Chinese,
Japanese)
-
Response time: 10 ms
-
Position accuracy: 3 mm
-
Resolution: 4096 x 4096
Specifications:
|
SPACER |
US:12/457,223 TW:98209551 CN:200920153408.7
|
|

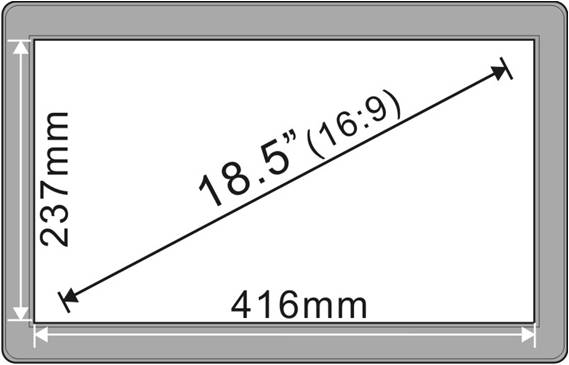

LCD SIZE |
18.5" WSXGA (16:9)
|
|
VIEWABLE AREA |
416.40 X 237.00 mm
|
|
ACTIVE AREA |
411.00 X 231.60 mm
|
|
TRANSMITTAL |
82% ± 5% |
|
Surface Hardness
|
≥3H (JIS K5400)
|
|
TOUCH RESOLUTION
|
4096 x 4096 |
|
INTERFACE CONTROLLER
|
External controllers: USB port
|
|
OPERATING SYSTEMS
|
Windows 2000, XP, VISTA, Windows 7
|
|

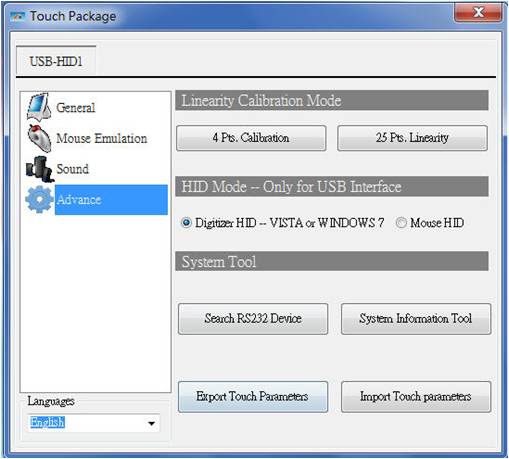

HID MODE |
Digitizer HID-Vista or Windows7 / Mouse HID
|
|
ACTIVATION FORCE
|
≤50g
|
|
RESPONSE TIME |
10 msec maximum.
|
|
POSITION ACCURACY
|
3 mm maximum error.
|
|
OPERATING TEMPERATURE
|
-10°C to +60°C
|
|
STORAGE TEMPERATURE
|
-40°C to +75°C
|
|
HUMIDITY |
Pass 40 degrees C, 95% RH for 96 hours.
|
|
DURABILITY |
Finger Touch :35M touches / Pen Hitting :10M touches
|
Package Contents:

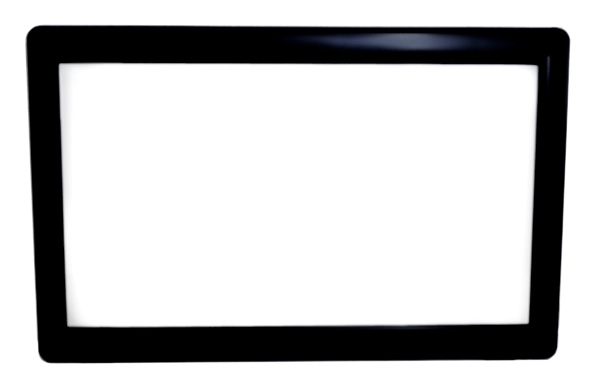

- Touch Panel

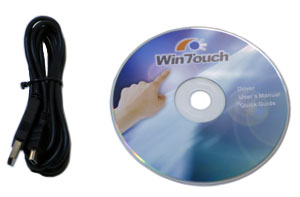

- USB Cable

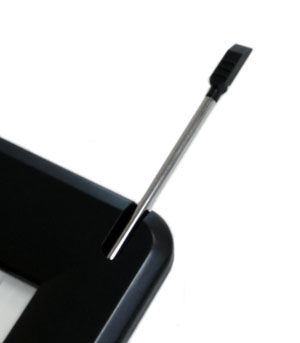

- Touch Pen
- Driver CD
- Quick Installation Guide
Warranty: 1 Year |
|
