Outdoor 2.4GHz

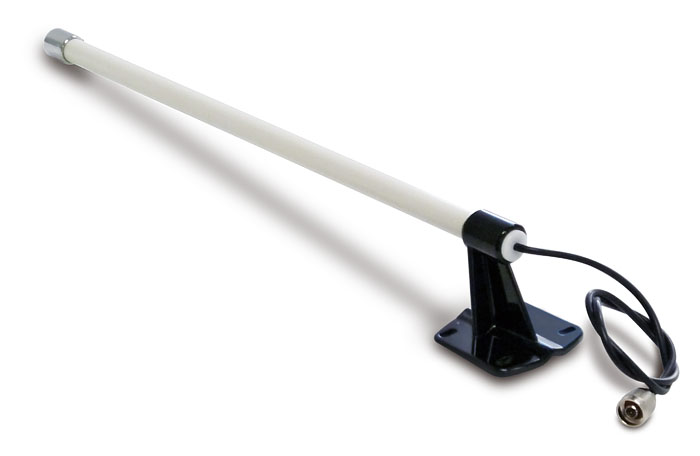

10dBi OMNI-Directional High-Gain N-Type Male Antenna for WiFi WLAN 802.11
Application
|
|
Part#: ANT-OMNI-10dBi
Features and Specs:
|
Frequency Range |
2400~2500MHz |
| Gain |
10±0.5dBi |
| VSWR |
1.8:1 Max |
|
Impedance |
50 Ohm |
|
Polarization |
Linear vertical |
| HPBW/Horizontal |
360º |
| HPBW/Vertical |
17º |
| Power
handling |
20W |
| RF
Connector |
N-Type(M) |
|
Survival wind speed |
190Km/hr |
|
Temperature |
-40ºC~+80ºC |
|
Humidity |
100%@25ºC |
|
Lightning Protection |
DC ground |
| Cable |
RG-58. 66cm |
|
Antenna Material |
Fiberglass |
| Weight |
380g |
|
Dimensions |
55 x 8.1 x 7.8 cm (HxWxD) |

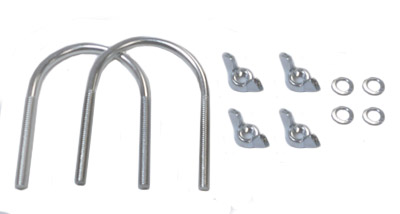

Package Content:
Warranty: 1 year
|
|
