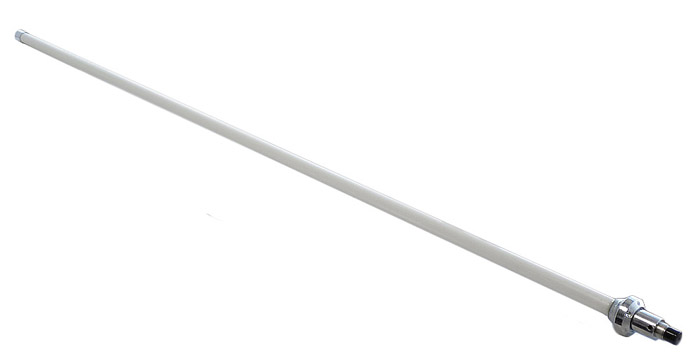

Outdoor 2.4GHz
15dBi OMNI-Directional High-Gain N-Type Female Antenna for WiFi WLAN 802.11
Application
|
|
Part#: ANT-OMNI-15dBi

Features and Specs:
|
Frequency Range |
2400~2500MHz |
| Gain |
14.5±0.5dBi |
| VSWR |
1.8:1 Max |
|
Impedance |
50 Ohm |
|
Polarization |
Linear vertical |
| HPBW/Horizontal |
360º |
| HPBW/Vertical |
11º |
| Power
handling |
50W |

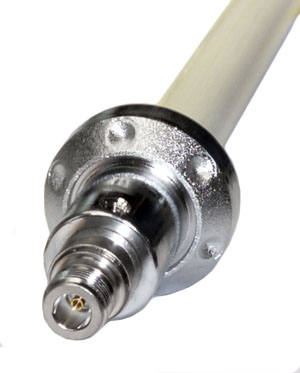

| RF
Connector |
N-Type female |
|
Survival wind speed |
180Km/hr |
|
Temperature |
-40ºC~+80ºC |
|
Humidity |
100%@25ºC |
|
Lightning Protection |
DC ground (optional) |
| Radome color |
Gray-White |
| Radome Material |
Fiberglass |
| Weight |
6.6 lbs |
|
Dimensions |
186 x 4 cm (HxD) |

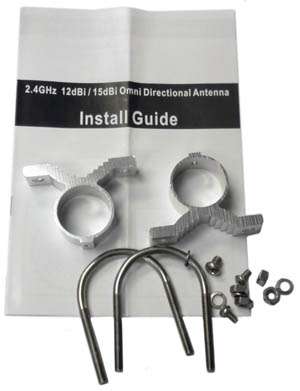

Package Content:
Warranty: 1 year
|
|
