Brand New

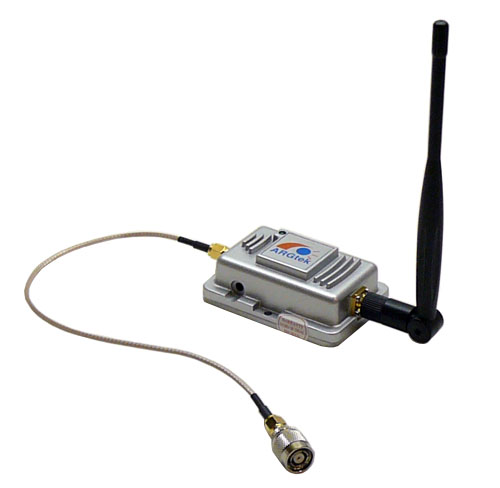

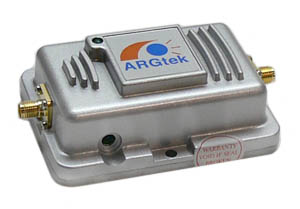

ARGtek Indoor 1W/30dBm 802.11b/g/n Fixed-Gain Booster/Amplifier
W/5dBi Antenna
Signal up to 1500M (5000ft)*
 Fits on TNC & SMA Routers
Made in Taiwan=Quality Assurance

Model: ARG-2301A-TNC



SMA to TNC Adapter included. Works on routers which either SMA or TNC connectors

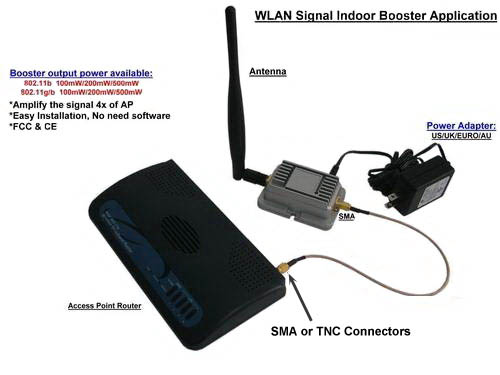

how to installation:



Description:
       WZ-2301A is an indoor solution 1W bi-directional Booster designed for 2.4GHz wireless LANs. This unit comes with an easy plug-and-play installation, which works together with an indoor Wireless Access Point to improve its operation range and performance.
       The unit is ideal for use with 2.4 GHz frequency hopping or direct sequence spread spectrum radio modems and 802.11b/g devices.
       The amplifiers increase range by providing transmit gain as well as low-noise receive gain. This receive gain increases the receive sensitivity of wireless LAN Access Point. Full output power of 1W is achieved with only 5 mW input into the Booster.

Character:

  • Cast Aluminum Construction

  • Power and transmit LEDs

  • 15dB transmit gain (adjustable)

  • Lightning Protection

  • High Gain, High Value, High Performance

  • Increase range of low powered radio modems

Antenna Specifications:

  • 5dBi Antenna w/SMA Female Connector

  • 145% Performance

  • 150% Distance

  • Antenna length: 191mm

  • Connector: SMA Female

Booster Specifications:

Operation Range 2400-2500 MHz
Operating Mode Bi-directional, half-duplex, Auto-Switching via carrier sensing
Transmit Gain 15dB (Adjustable)
Output Power 1W/30dBm nominal for 802.11g/54Mbps
Frequency Response *+- 1dB over operation range
Transmit Input Power Max. 100mW, Min 6mW
Receiver Gain 15dB typical
Receive Noise Figure 3.5dB typical
Connector SMA receptacle (50 ohm)
Power 6V DV Max. current <1A, 90-264V for AC adapter
Operating Temp. *-20 to + 70C
Operating Humidity Up to 95% relative humidity
Distance* Up to 1500M (5000ft) depends on environment
Dimension (cm) 7.8 cm (L) x 5.6 cm (W) x 2.9 cm (H)
Material Die Casting Aluminum
Safety Certification FCC/CE/VCCI

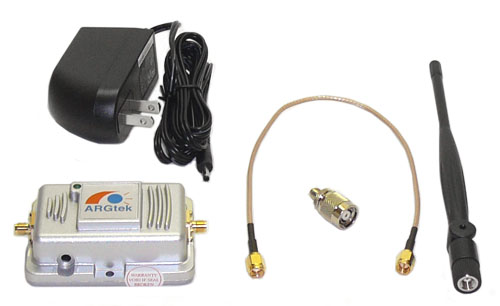

Package Content:

  • 1W Booster/Amplifier

  • AC adapter (110~240V input)

  • RG316 Cable (30cm) (Connector: RP-SMA-Male to RP-SMA-Female )

  • SMA to TNC Adapter (SMA-Male to TNC-Female)

  • 5dBi Antenna

  • Manual

Warranty: 1 year
