Brand New

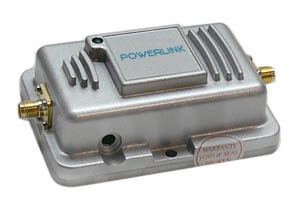

POWERLINK Amplus Indoor 1W/30dBm 802.11b/g/n Fixed-Gain Booster/Amplifier
W/5dBi Antenna
Fits on TNC & SMA Routers
Signal up to 2000 Meters (6600ft)*

Part#: PL-2301A
Model: Amplus



SMA to TNC Adapter included. Works on routers which either is SMA or TNC connector

SMA Connectors

Male central Pin

Female central Receptacle
Inside Thread
(outer nut/shell)		 SMA Plug / SMA Male Reverse SMA Plug / Reverse SMA Male / RP-SMA Male
Outside Thread Reverse SMA Socket / Reverse SMA Female / RP-SMA Female SMA Socket / SMA Female

Description:
       POWERLINK Amplus is an indoor solution 1W bi-directional Booster designed for 2.4GHz wireless LANs. This unit comes with an easy plug-and-play installation, which works together with an indoor Wireless Access Point to improve its operation range and performance.
       POWERLINK Amplus is ideal for use with 2.4 GHz frequency hopping or direct sequence spread spectrum radio modems and 802.11b/g devices.
       POWERLINK Amplus increases range by providing transmit gain as well as low-noise receive gain. This receive gain increases the receive sensitivity of wireless LAN Access Point. Full output power of 1W is achieved with only 5mW input into the Booster.

Features:

  • Fits on routers with TNC & SMA connector

  • Cast Aluminum Construction

  • Power and transmit LEDs

  • 15dB transmit gain (adjustable)

  • Lightning Protection

  • High Gain, High Value, High Performance

  • Increase range of low powered radio modems

Antenna Specifications:

  • 5dBi Antenna w/RP-SMA male Connector

  • 145% Performance

  • 150% Distance

  • Antenna length: 191mm

  • Connector: RP-SMA male

Booster Specifications:

Operation Range 2400-2500 MHz
Operating Mode Bi-directional, half-duplex, Auto-Switching via carrier sensing
Transmit Gain (Auto) 15dB (Adjustable)
Output Power 1W/30dBm nominal for 802.11g/54Mbps
Frequency Response *+- 1dB over operation range
Transmit Input Power Max. 100mW, Min 6mW
Receiver Gain 15dB typical
Receive Noise Figure 3.5dB typical
Connectors SMA receptacle (SMA F) and TNC receptacle (RP-TNC F)
(50 ohm)
Power 6V DV Max. current <1A, 90-264V for AC adapter
Operating Temp. *-20 to + 70C
Operating Humidity Up to 95% relative humidity
Distance* Up to 2000M (6600ft) depends on environment
Dimension (cm) 7.8 cm (L) x 5.6 cm (W) x 2.9 cm (H)
Material Die Casting Aluminum
Safety Certification FCC/CE/VCCI

Package Content:

  • 1W Booster/Amplifier

  • AC adapter (110~240V input)

  • RG316 Cable (30cm) (Connector: RP-SMA Male to SMA Male)

  • SMA to TNC Adapter (SMA-Male to TNC-Female)

  • 5dBi Antenna

  • Manual

Warranty: 1 year
