New
850 / 1900MHz Dual Band Cellular Signal Amplifier Kit for Home and office
w/Yagi and Ceiling Antenna, 5M &15M RG-6 Coaxial Cables.

Part#: PL-SA8519

See Manual here





Overview:

Now featuring adjustable gain to simplify installation! The cellular signal booster is dual-band (800 &1900 MHz) wireless amplifier for use in homes, offices and other buildings. It significantly improves voice and data performance for multiple cell phones and data cards simultaneously, and works with all major North American cell phone carriers, which include both Cellular (824-894 MHz) and PCS (1850-1990 MHz) carrier frequency bands. This 65 dB in-building booster combines high performance with ease of installation, and it can be used with an outside directional high gain antenna or omni-directional antenna with that eliminates researching cell tower locations and antenna orientation.

Features and Specs:

  • Cover up to 13000sqft in free space.

  • Greatly reduces dropped calls, extends signal range, and increases data rates

  • Reduce radiation to human body and brain from cell phone

  • Extend cell phone battery lifespan

  • No physical connection to your cell phone or data card

  • Allows multiple phones and cellular data cards to be used simultaneously

  • Oscillation (or interference) detection and automatic shutdown with auto reset

  • Overload protection circuit – protects cell towers from being overloaded

  • Amplifies signals both to and from the cell tower

  • Automatic Level Control technology used to provide auto amplitude fixing

  • Maximum 2500 milliwatts output power - More than 20 times the power of your cell phone alone

  • Works on all generations of CDMA, TDMA, GSM, and 3G Networks

  • Extends phone battery life – Booster enables phone to work at reduced power

  • Low Loss 75ohm RG-6 coaxial cable

  • Nickel-plated body and gold-plated center pins

  • Conductor Material: Copper Clad Steel

  • Shield Material: Bare Copper Braid

  • Insulation Material: Solid Polyethylene

Amplifier Specifications:

Part#

PL-SA8519
Frequency   Uplink Downlink
GSM900 /DCS1800 890~915 1710~1785
935~960 1805~1880
CDMA850 /PCS1900 824~849 1850~1910
869~894 1930~1990
GSM /WCDMA 890~915 1920~1980
Gain Uplink: 60 dB / Downlink: 65 dB
Output Power 23dBm
ALC 28dB
I/O Impedance 50 ohms
I/O Return Loss less than -8dB
Max Uplink Power 1140 mw / 1114 mw
Max Downlink Power 26 dBm / 25 dBm
Noise Figure 3.5 dB nominal
Band Flatness ±5dB
Power Requirements 110-240 V AC, 45-55 Hz, 8 W
Amplifier Connectors N-Female
Dimensions 6.2 x 4.2 x 1.5 (inches) / 15.7 x 10.7 x 3.8 (cm)
Weight 0.64 lbs / 0.29 kg

Yagi Antenna Specifications:

Frequency Range 806-960MHz 1710-2500MHz
Gain 8.5dBi 8.5dBi
VSWR 1.5:1 Max 1.5:1 Max
Impedance 50 Ohm 50 Ohm
Polarization Vertical or Horizontal Vertical or Horizontal
Beamwidth/Horizontal 70º 70º
Beamwidth/Vertical 55º 55º
Power handling 50W 50W
Front Rear Ratio >20dB
RF Connector N Female
Cable length 24cm
Temperature -40ºC~+60ºC
Weight 1.05 lbs
Dimensions

295x210×65mm (11.6"x8.3"x2.6")

Ceiling Antenna Specifications:

Frequency Range 806-960MHz 1710-2500MHz
Gain 3dBi 5dBi
VSWR 1.5:1 Max 1.5:1 Max
Impedance 50 Ohm 50 Ohm
Polarization Vertical or Horizontal Vertical or Horizontal
Beamwidth/Horizontal 180º 180º
Beamwidth/Vertical 180º 180º
Power handling 50W 50W
Front Rear Ratio >20dB
RF Connector N Female
Cable length 33cm
Temperature -40ºC~+60ºC
Weight 0.45 lbs
Dimensions

Φ165×105mm (Φ6.7"x4.1")

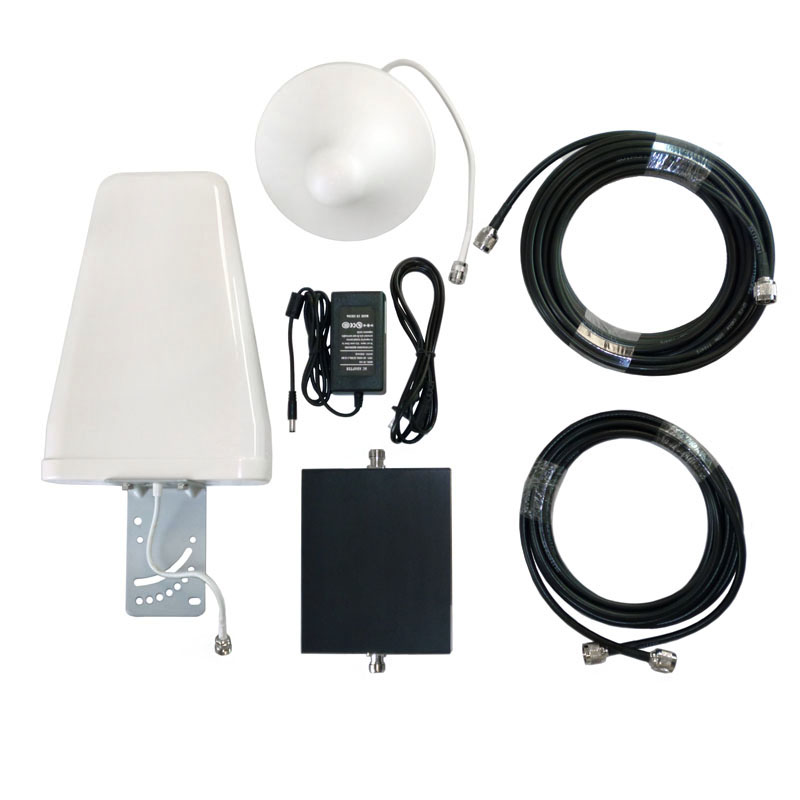

Kit Contents:

  • Yagi Antenna (Outdoor)

  • Ceiling Antena (Indoor)

  • Dual Band Amplifier

  • 15 Meter N-M to N-M RG-6 Cable (Indoor)

  • 5 Meter N-M to N-M RG-6 Cable (from Outdoor to Indoor)

Shipping info: 8.8lbs. 17.7"x10.5"x9.7"

Warranty: 1 year
