Brand New

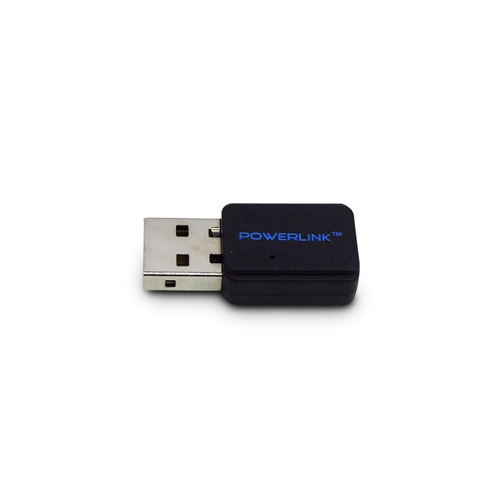

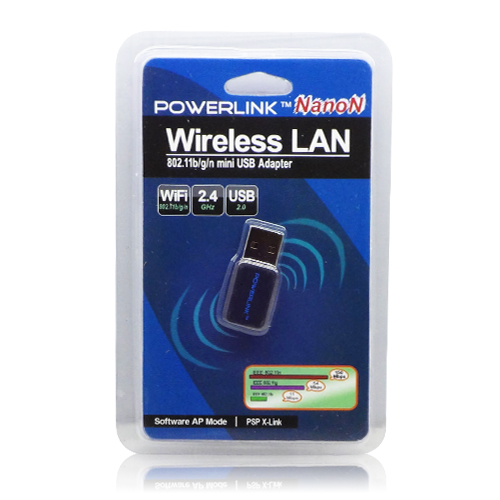

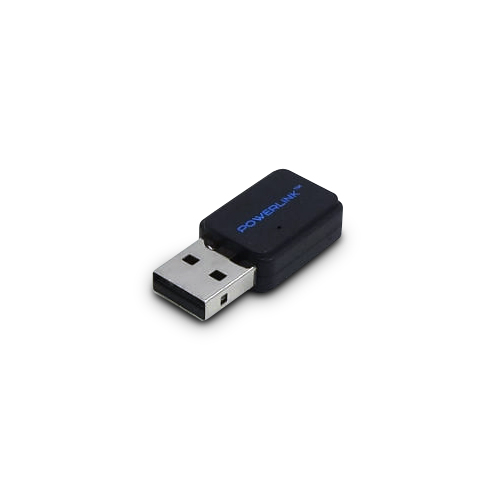

PowerLink NanoN Wireless 150Mbps
802.11n USB Adapter
Comply with 802.11N, 802.11g and 802.11b Standards


Model: NanoN
Part#: PL-U2N





Overview:

The PowerLink NanoN is a 802.11b/g/n WLAN USB adapter w/compact size design, It supports up to 150Mbps high-speed wireless network connections.

Features:

  • Supports WMM & WMM-PS

  • Supports Multiple BSSID

  • Supports Cisco CCX 5.0

  • Ultra Compact size

  • WPA, WPA-PSK, WPA2, WPA2-PSK

  • Low Power Consumption

Specification:

  • RF Chipset: Ralink RT5370

  • Standard: IEEE 802.11b/g/n

  • Interface: USB 2.0 and 1.1 compliant

  • Antenna Type: Internal

  • Receive Sensitivity: -68dBm, 802.11n. -68dBm, 802.11g. -85dBm, 802.11b.

  • Operating Range: Up to 300 meters depending on surrounding environment.

  • Frequency: 2.412~2.484GHz ISM band

  • Modulation Method: IEEE 802.11b: DBPSK / DQPSK / CCK. IEEE 802.11g: BPSK / QPSK/ 16QAM / 64QAM

  • Data Transfer Rate:

    • 802.11b: Up to 11Mbps.

    • 802.11g: Up to 54Mbps.

    • 802.11n: 20Mhz up to 72.2Mbps, 40Mhz up to 150Mbps

  • Security: 64/128bit WEP (Hex&ASCII). WPA, WPA2, WAPI, TKIP, AES

  • CE FCC RoHS compliant

  • Dimension:  35(L) x 15(W) x 8(H) mm

Package Content:

  • 802.11n Wireless LAN USB Adapter

  • Driver/Manual CD

  • Quick User Manual

Operating System:

  • Win Vista 32/64-bit/7 32/64-bit/8

  • Mac 10.6. 10.7, 10.8

  • Linux Kernel 2.6.35 and after (Supports Wifi Direct (WIFI P2P)

  • Works with Raspberry Pi

Warranty: 1 year

Shipping details:

Part# Carton Qty/Weight (lbs) Shipping Weight ea(lbs.) UPC Code Package Dimension
(L x W x H)
Carton Dimension
(L x W x H)
PL-U2N 200 / 24 0.12 813538012410 5.75" x 3.75" x 0.75" 16.4" x 16.6" x 12.2"
