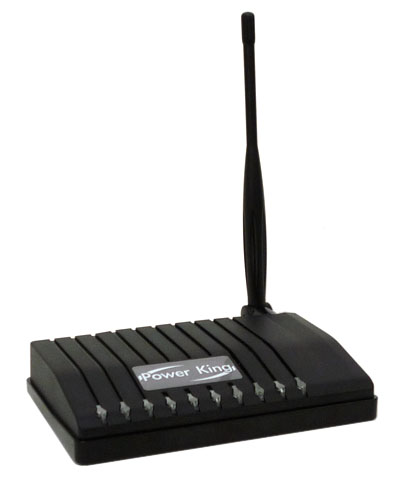

Brand New
AP Router + 1W AmPT-H5D-11Nplifier/Booster 2in1 Combo
High Power
1W, 27dBm w/High Gain 5dBi Dipole Antenna 802.11b/g Wirelss Router w/4 Port
Switch
Transmit up to 3300ft*
Chipset: Realtek
Improving 3X Signal Reception and 7XSpeed (Compare to a regular 802.11g router)
|
|
Part#: PT-AP-1W

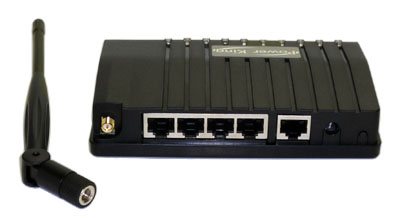

Diagram:
Description:
This High Power
AP/Router w/built-in 4 LAN ports fully supports the features and functional
compliance of IEEE 802.11b/g standard to provide high-speed data transmission up
to 54Mbps and can increase the coverage range efficiently. With built-in 1W
amplifier, it is increasing your
signal coverage up to 3X, and speed up to 7X. Getting connected for long distant
is what this high power can offer while other router can't. You will never need
an external WiFi signal booster/amplifier anymore.
Features:
- High Power with 5dBi
detachable antenna
- 1W amplifier booster built-in
- Distance up to 3300ft (1km) (with high
power adapter 500mW on recipiency end)*
- Wireless Data transfer rates up to 54Mbps
- Provides one 10/100Mbps Auto-Negotiation Ethernet WAN ports for WAN
connection
- Provides four 10/100Mbps Auto-Negotiation Ethernet LAN ports for LAN
connections
- Supports remote/local Web management
- TCP/UDP/ICMP/ARP protocol stack
- UPnP, Dynamic DNS, Static Routing, VPN Pass-through.
- WDS
- DHCP Client and Server
- WAN access mode
- PPPoE PPTP
- Fixed IP address
Specification:
|
Industrial Standard |
|
Standard |
802.11b/g
(Wireless), 802.3 (10BaseT), 802.3u (100BaseT) |
|
Interface |
One
10/100BaseT with RJ45 port (WAN)
Four
10/100BaseT with RJ45 ports (LAN) |
|
Security |
64
bit/128 bit WEP, WPA, WPA2, port filtering, IP filtering, MAC filtering,
port forwarding and DMZ hosting |
|
RF |
|
Frequency
Band |
2.4GHz
–
2.4846GHz ISM Band, DSSS |
|
Signal
Type & Modulation |
CCK
(802.11b), OFDM (802.11g) |
|
Antenna |
RP-SMA
Female External Antenna |
|
Output
Power |
0.4 W:
22±1.5dBm@11b
; 16 ±1.5dBm@ 11g
1.0 W:
27±1.5dBm@11b
; 20 ±1.5dBm@11g |
|
Sensitivity |
802.11b
-80 dBm@8%PER
802.11g
-68 dBm@8%PER |
|
Channels |
Ch1
2.412Ghz - CH14 2.484Ghz |
|
Management |
Web-base |
|
Hardware |
|
Base
Platform |
RTL 8186 |
|
Clock
Speed |
180Mhz |
|
Reset
Switch Built-in |
SW2 |
|
SDRAM |
16MB
(with 2 2Mx16x4
SDRAM chips) |
|
Flash |
2MB |
|
Built-In
LED Indicators |
1 Power,
2(Wireless), 1(WLAN), 4(Ethernet) 2 (GPIO) |
|
Environment |
0 – 50° C
ambient temperature |
|
Power
Supply |
DC 12V @
1.25A/1.5A PoE power supply |
|
Dimensions |
135 x 91
x 24 mm |
|
Package
weight |
560g
|
Package Content:
Operating System:
Warranty: 1 year
|
|
