Brand New

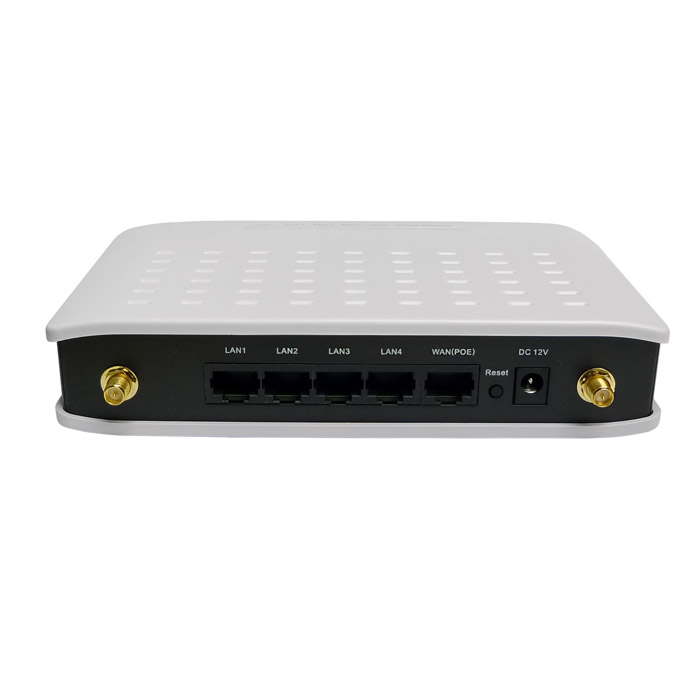

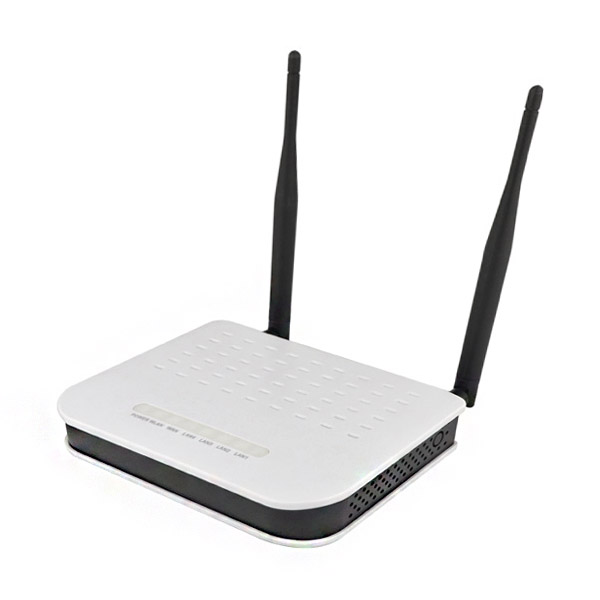

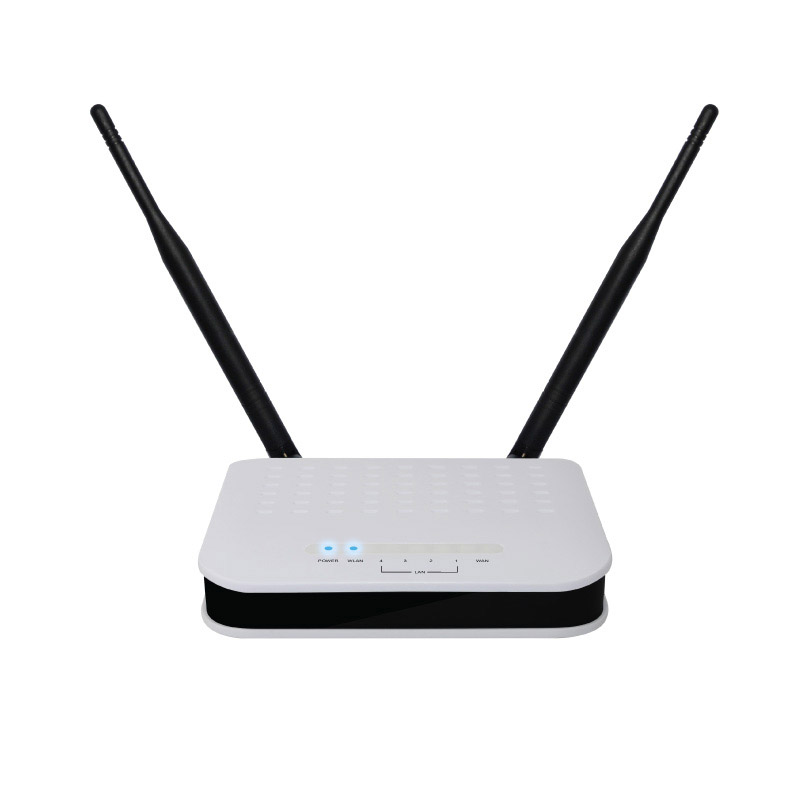

802.11b/g/n 150Mbps AP Router + 1W Amplifier/Booster 2in1 Combo
High Power 1W, 28dBm w/High Gain Dual 5dBi Dipole Antenna Wireless Router w/4 Port Switch
PoE DC Injector Included


Part#: WM-8707H





Overview:

      The WM-8707H High Power AP/Router w/built-in 4 LAN ports fully supports the features and functional compliance of IEEE 802.11b/g standard and 802.11n to provide high speed data transmission up to 150Mbps and increase signal strength and coverage range significantly. WM-8707H has 1W signal amplifier built-in, and getting connected for long distance is what WM-8707H high power router can offer while others can't. It also includes a PoE adapter which allow the Boost N to be installed 328ft away from a power outlet. You will never need an external WiFi signal booster/amplifier anymore.

Features:

  • Operates on 2.4 GHz frequency band including 11n mode

  • Backward compatible with legacy IEEE 802.11g, 802.11b (2.4GHz) standards

  • High power and high sensitivity for extended coverage.

  • Freedom of placement using the PoE DC injector for up to 328ft (100m) or use AC adapter directly.

  • Configuration and management operated via Web browser with password protected access.

  • Firmware upgrade via HTTP.

  • Supports Gateway, Bridge, and WISP mode for wireless networks.

  • Supports 64/128bit WEP, WPA (TKIP with IEEE 802.1x), WPA2 (AES with IEEE 802.1x)

  • Supports NAT, SPI (Stateful Packet Inspection) for advanced firewall features

  • Compliant with IEEE 802.3 and IEEE 802.3u 10/100 Mbps

  • Supports WMM function to meet the multimedia data bandwidth requirement

  • Supports multiple ESSIDs with individual security settings.

Specification:

  • Standards

    • IEEE 802.1d (Spanning Tree Protocol)

    • IEEE 802.11b (11 Mbps Wireless LAN)

    • IEEE 802.11g (54 Mbps Wireless LAN)

    • IEEE 802.11n Draft 2.0 (300 Mbps Wireless LAN)

    • IEEE 802.1x (Network Access Control)

    • IEEE 802.3 (10BaseT Ethernet)

    • IEEE 802.3u (100BaseTX Fast Ethernet)

  • General

    • Ethernet port: 5 RJ45 10/100 Mbps data port; one WAN and 4 LAN interface

    • Flash: 2 MB

    • Memory: 16 MB SDRAM

  • Wireless

    • Chipset: Ralink RT3050F

    • Wireless frequency range: 2.400 ~2.483 GHz

    • Ultra long distance range: Up to 2000 meters (Depending on surrounding environment)*

    • Modulation technologies:

    • 802.11b: Direct sequence Spread Spectrum (DSSS): DBPSK, DQPSK, CCK

    • 802.11g: Orthogonal Frequency Division Multiplexing (OFDM): BPSK, QPSK, 16QAM, 64QAM

    • 802.11n: Orthogonal Frequency Division Multiplexing (OFDM): BPSK, QPSK, 16QAM, 64QAM

    • Data rates:

    • IEEE 802.11b (11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps)

    • IEEE 802.11g (54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps)

    • IEEE 802.11n (MCS015: up to 300 Mbps)

    • Output power:

    • OFDM: 23 dBm ±1.5 dBm @150 Mbps

    • OFDM: 23 dBm ±1.5 dBm @54 Mbps

    • CCK: 28 dBm ± 1dBm @11 Mbps

    • Receiver sensitivity:

    • 11n (150 Mbps) MCS015: -68 dBm;

    • 11g (54 Mbps) OFDM: -68 dBm

    • 11b (11 Mbps) CCK: -85 dBm

    • Operation modes:

    • Gateway mode

    • Bridge mode

    • Wireless AP Client Router mode

    • Wireless Client mode (Station)

    • Wireless security:

    • WEP encryption (64/128 bit)

    • WPA TKIP

    • WPA2 AES

    • WPA2 mixed

    • 802.1x Authentication

    • Client access control through media access control (MAC) filter

    • Antenna:

    • Two 5dBi detachable dipole antenna


  • LEDs

    • Power

    • LAN Link/Act


  • Environmental

    • Operating temperature: 0°C  50°C

    • Operating humidity: 10  95% RH, noncondensing

    • Power Adaptor: 12V 1.25A

  • PoE DC Injector

    • Passive
    • Input: 12V 1.5A
    • Ethernet: 10/100Mbps RJ45
    • Dimension: 49.5x26.8x23.9mm

  • FCC RoHS compliant

Package Content:

  • High Power Router Unit

  • Dual 5dBi Detachable Antenna

  • PoE DC Injector

  • Power AC adapter (Inpute100~240V, Output 12V 1.25A)

  • Manual

Warranty: 1 year
