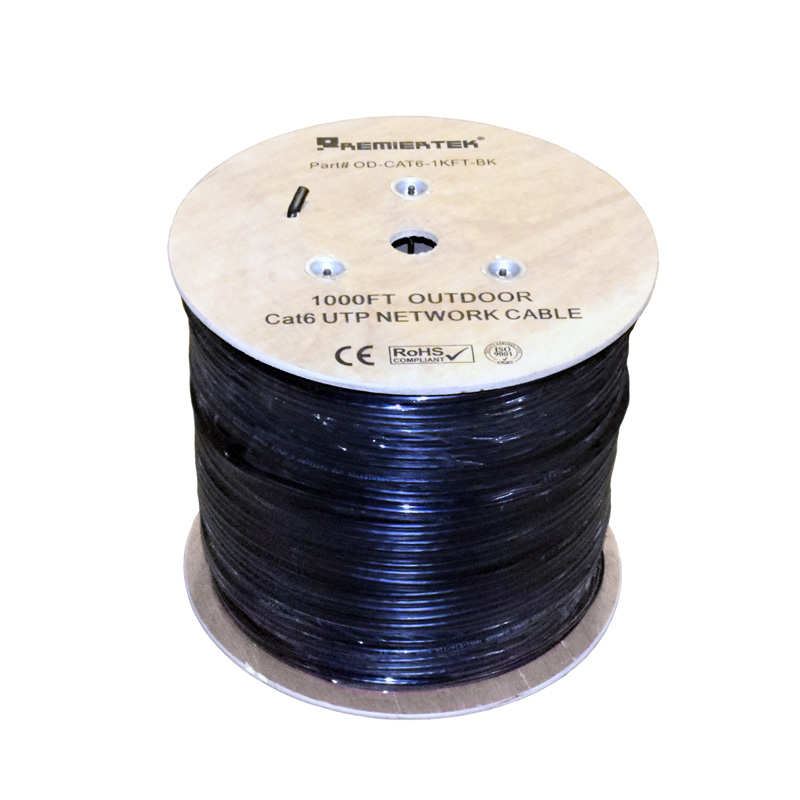

Premiertek Outdoor 1000Ft Cat6 23AWG CCA UTP 4-pairs Premium Network LAN Cable Direct Burial UV Rated Waterproof

Part#: OD-CAT6-1KFT-BK












Overview:

      Direct Burial CAT6 is used for applications that require the cable to be outdoors or directly in ground with or without the use of a conduit. Direct Burial CAT6 is made with a polyethylene (PE) jacket to protect the cable from water, and extreme temperatures. Four color-striped pairs make it easy to install and reduces alien crosstalk. This cable can be measured and cut to exact distances, then terminated to a connector, jack, or patch panel. This CAT6 cable is certified and fluke tested for gigabit Ethernet and 350Mhz.



Product Features:
  • U/V Resistant and Water Proof HDPE Insulated LDPE Jacket
  • Thick Polyethylene (PE) Protective Jacket for Indoor/Outdoor use
  • Color: Black
  • Cat6 Certified Transfer Rate: 10/100/1000 mbps (1000Base-T Gigabit).
  • 1000-foot of uncapped, unshielded twisted pair Ethernet cable
  • Copper Clad Aluminum/Copper Clad Alloy (CCA) construction
  • Four pairs
  • UTP Unshielded Twisted Pair
  • Conductor 23AWG / 0.57mm
  • Lead-free
  • Supplied in 1000ft Wooden Spool

Specifications:

  • Packaging: Wooden Spool in brown box packaging
  • Insulation: HDPE 1.01±0.03mm
  • Jacket: Black UV/WaterProof LDPE 5.8±0.03mm

Applications:

  • Gigabit Ethernet
  • 100 Mbps TPDDI
  • 155 Mbps ATM
  • IEEE 802.3
  • IEEE 802.5
  • IEEE 802.12
  • ISDN
  • VOICE

Regulatory Approvals:

  • RoHS
