Brand New in Retail Box
Mobile Disk
Aluminum 3.5" Dual Bay SATA to USB 2.0 (SATA I and II) JBOD/BIG External Enclosure
Max to 2TB (2 x 1TB)
W/ Cooling Fan
For PC
Made in Taiwan=Quality Assurance
Part#: ED-35-JB
Introduction:

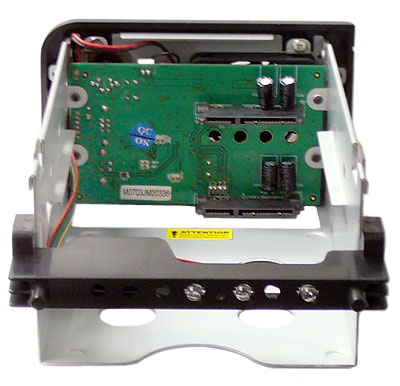

Dual Bay Enclosure, ED-35-JB, with USB2.0 interface, supporting two SATA
HDDs at once meets the need for larger storage capacity. With JBOD/BIG function,
users can have a enclosure to install two 3.5-inch SATA hard drives and have the
storage for sum of dual HDDs. Easy to install, suitable size from well design,
ED-35-JB brings a pretty dual bay enclosure.
Features:
-
Universal fitting for dual 3.5" SATAI/II HDD
-
Back panel Power ON/OFF switch
-
Plug and Play, Hot-swappable plug and play
-
Support SATA1.0 SATA2.0 specification
-
Support hard drive to 1TB, total
2TB
-
SATA to USB2.0, Backward compatible to USB V1.1
-
AC input: 100-240 VAC
-
DC output: 12V2A, 5V2A, 34W dual output
-
5cm internal fan
-
Dimension: (LxWxH) 199x25x75mm
Product
Specifications:
|
Model No.: |
ED-35-JB |
|
Chipset |
JMicron
JM20336 |
|
Host Interface |
USB2.0 |
|
HDD Support |
2 x 3.5” SATA I & SATA
II HDD |
|
USB Specification |
USB2.0 backward
compatible with USB1.1 |
|
SATA Specification |
SATAI/ SATAII max
3.0Gbps data transfer rate |
|
Support Auto Rebuilding |
Automatic disk rebuild
(when one or more SAFE volumes are configured) |
|
HDD Function |
Support JBOD (Spanning)/ BIG |
Plug & Play
|
Yes |
|
Power Supply |
External Universal
Switching Power Adapter
Input: 100~240V, 1.5A,
50-60Hz Output: 12V, 4.2A, 50W
Safety
Guarantee: CE/FCC/CUL/CB/CCC/TUV … |
|
Cooling FAN |
5CM Cooling FAN |
|
OS Support |
Microsoft Windows
ME/2000/2003/XP/VISTA, MAC 9.X OS |
|
Case Material |
Front & Rear Panel: ABS
Plastic Panel / Outer Case (Body): Rigid Aluminum /
Metal Tray |
|
Front Panel Interface |
Power / HDD 1 / HDD 2
LED indicator |
|

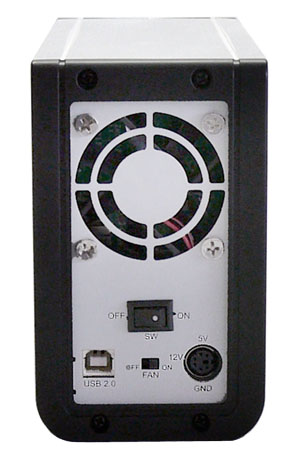

Rear Panel Interface |
5cm Cooling Fan / Power
On/OFF / FAN On/Off / DC-in / USB 2.0 type B |
Vertical Stand
|
Black Plastic Stand |
|
Safety Guarantee |
CE/FCC Certified |
|
ROHS |
RoHS Approved |
|
Dimension (LxWxH) |
200 x 75 x 124mm |
Package contents
-
ED-35-JB unit
- USB 2.0 Cable (A-B)
- AC Adapter w/Power cords (100~240 V)
- Case Stand
- Screws
- User Manual
System requirements:
-
One available USB port
-
Windows ME, 2000 XP and Vista
-
256MB RAM
Warranty: 1 year warranty.
 |
