Brand New

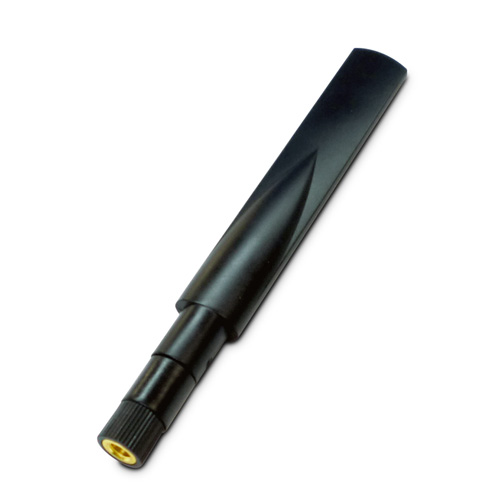

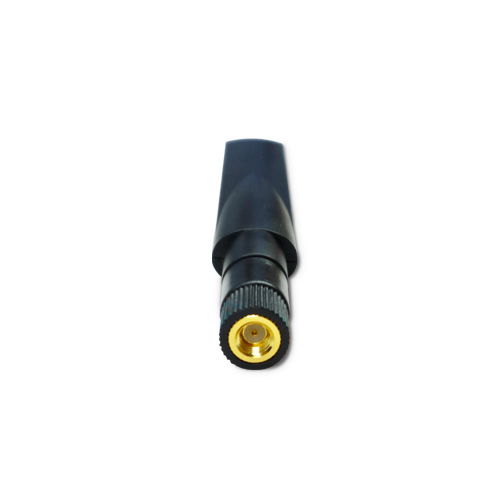

802.11ac/a/b/g/n 2.4GHz/5~5.8GHz Dual Band 5dBi Antenna

Part#: ANT-5DBI-DUAL



SMA Connectors

Male central Pin

Female central Receptacle
Inside Thread
(outer nut/shell)		 SMA Plug / SMA Male Reverse SMA Plug / Reverse SMA Male / RP-SMA Male
Outside Thread Reverse SMA Socket / Reverse SMA Female / RP-SMA Female SMA Socket / SMA Female

    The problem with many wireless networks is the poor coverage area of standard Wireless networks. This 2.4/5GHz Hi-Gain Wireless Antenna can boost your wireless signal strength from a standard 2dBi to 3~5dBi. By increasing the strength of your external wireless antenna, your Wireless Network distance, signal strength and performance is significantly improved. Simply point your Wireless Directional Antenna in the direction of your Access Point or Network Adapter and easily extend your signal range and quality. The Hi-Gain Corner Antenna is the perfect solution for providing Wireless coverage in very large rooms, conference halls or buildings.

    The antenna attaches directly to the external antenna connector of your Wireless Access Point(Router) or Wireless Network Adapter. Simply unscrew your current antenna and screw on the Hi-Gain antenna and you're ready to go!

Features:

  • 200% Performance

  • 200% Distance

  • 2.4GHz/5~5.8Ghz 5dBi indoor Dual Band Omni-Directional Antenna

  • Compliant with 802.11ac/a/b/g/n

  • Compliant with AP/Router/PCI Card or other wireless devices with RP-SMA Female connector

Applications:

  • 2.4GHz-2.5GHz / 5.15~5.875 GHz ISM Band

  • IEEE 802.11a/b/g/n Wireless LAN

  • 802.16WiMax Networks

  • Pubic Wireless Hotspot

  • Bluetooth and Wi-Fi

  • Wireless Video Systems

  • Directional and multipoint application

Specifications:

  • Frequency Band: 2400MHz – 2483MHz / 5050MHz – 5900MHz

  • Frequency Ranges & Gain: 2400-2483 MHz @ 3 dBi. 5050-5900 MHz @ 5 dBi

  • Polarization: Linear

  • Horizontal Beam width: 360 degree

  • Impedance: 50 Ohm

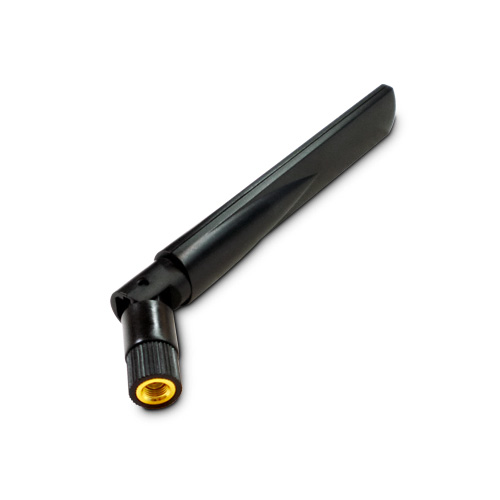

  • Antenna features tilt and swivel design

  • Connector: Reverse SMA Male (RP-SMA Male)

  • Antenna length: 153mm (6")

  • Connector: Reverse SMA Plug / Reverse SMA Male

Package Content:

  • One 5dBi Dual Band Antenna w/RP-SMA Male connector

Warranty: 1 year
