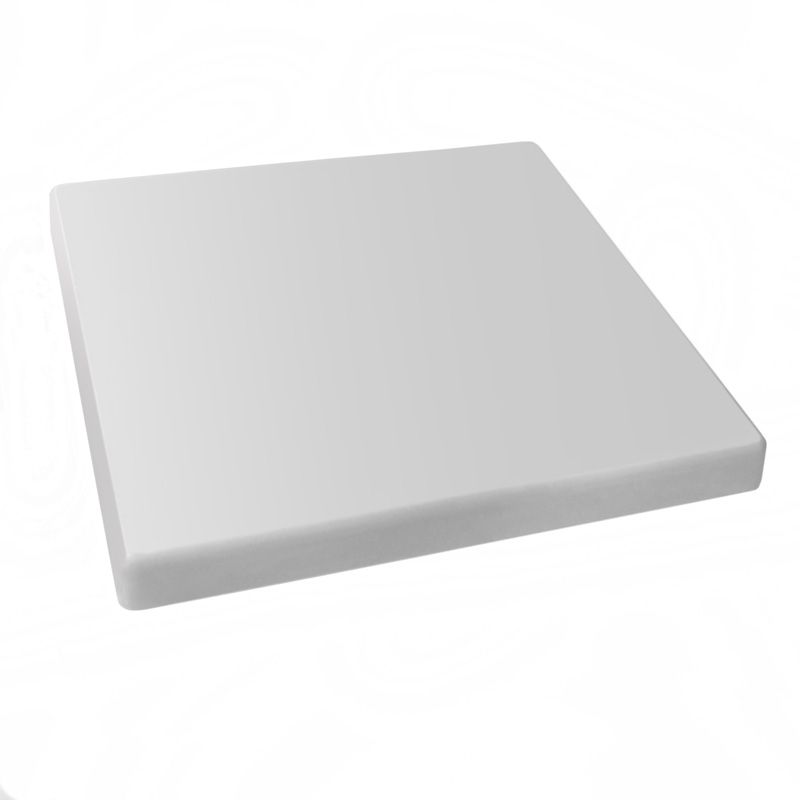

2.4GHz/5GHz 802.11ac/a/b/g/n Dual Band MIMO 11dBi/13dBi Panel Antenna 2x N Female

Part#: ANT-D245813-MIMO









Overview:

This very high performance MIMO 2.4GHz and 5GHz directional WiFi panel antenna provides broad coverage and 11/13dBi gain. It is ideally suited for 2.4GHz and 5GHz IEEE 802.11ac, 802.11a, 802.11b, 802.11g and 802.11n wireless LANs, Bluetooth®, public wireless hotspot applications and other outdoor applications where wide coverage is desired.

Specification:

Frequency Range 2400~2500MHz / 5150~5850MHz
Gain 2.4GHz: 11dBi
5GHz: 13dBi
VSWR 1.8:1 Max
Impedance 50 Ohm
Polarization Vertical
Beamwidth/Horizontal 65º / 55º
Beamwidth/Vertical 30º / 25º
Power handling 100W
F/B Ratio >30dB
RF Connector 2x N Female
Rated Wind Velocity 241km/hr
Temperature -40ºC~+80ºC
Waterproof Yes
Antenna Weight 1.4 lbs
Dimensions (LxWxD)

250 x 250 x 25mm (10" x 10." x 1")

Package Content:

  • One 2.4GHz/5GHz Dual Band MIMO 11dBi/13dBi Panel Antenna

  • Mounting Bracket

Warranty: 1 year
