Part#: ANT-D245818
Overview:

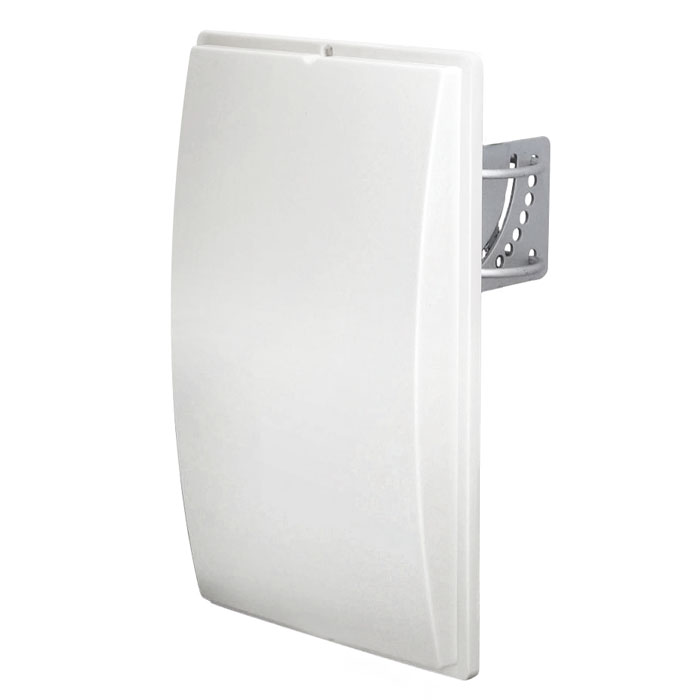

This very high performance 2.4GHz directional WiFi
panel antenna provides broad coverage and 18dBi gain. It is
ideally suited for 2.4GHz and 5GHz IEEE 802.11ac, 802.11a, 802.11b, 802.11g and 802.11n wireless LANs, Bluetooth®,
public wireless hotspot applications and other outdoor applications where
wide coverage is desired.
Specification:
|
Frequency Range |
2400~2483MHz.
5150~5850MHz |
| Gain |
2.4GHz:
16dBi
5GHz: 18dBi |
| VSWR |
1.5:1 Max |
|
Impedance |
50 Ohm |
|
Polarization |
Vertical |
| Beamwidth/Horizontal |
65º |
|
Beamwidth/Vertical |
29º |
| Power
handling |
50W |
| RF
Connector |
N Female |
|
Temperature |
-40ºC~+80ºC |
|
Waterproof |
Yes |
|
Antenna Weight |
1.15 lbs |
|
Dimensions (LxWxD) |
314x 191 x 40mm (12.4" x
7.5" x 1.6") |
Package Content:
Warranty: 1 year
|
