Part#: ANT-P2416
Overview:

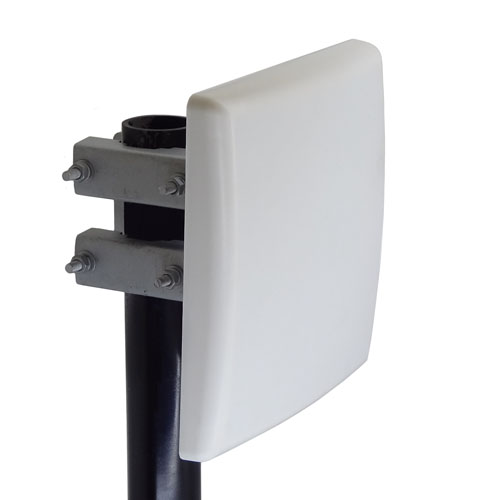

This very high performance 2.4GHz directional WiFi
panel antenna provides broad coverage and 16dBi gain. It is ideally suited for
2.4GHz IEEE 802.11b, 802.11g and 802.11n wireless LANs, Bluetooth®, public
wireless hotspot applications and other outdoor applications where wide coverage
is desired.
Specification:
|
Frequency Range |
2400~2483MHz |
| Gain |
16dBi |
| VSWR |
1.5:1 Max |
|
Impedance |
50 Ohm |
|
Polarization |
Vertical |
| Beamwidth/Horizontal |
35º |
|
Beamwidth/Vertical |
30º |
| Power
handling |
50W |
| RF
Connector |
N Female |
|
Temperature |
-40ºC~+80ºC |
|
Waterproof |
Yes |
|
Antenna Weight |
0.8 lbs |
|
Dimensions (LxWxD) |
189 x 189 x 32mm (7.44"
x 7.44" x 1.25") |
Package Content:
Warranty: 1 year
|
