Brand New
Diamond
GM5* Wireless

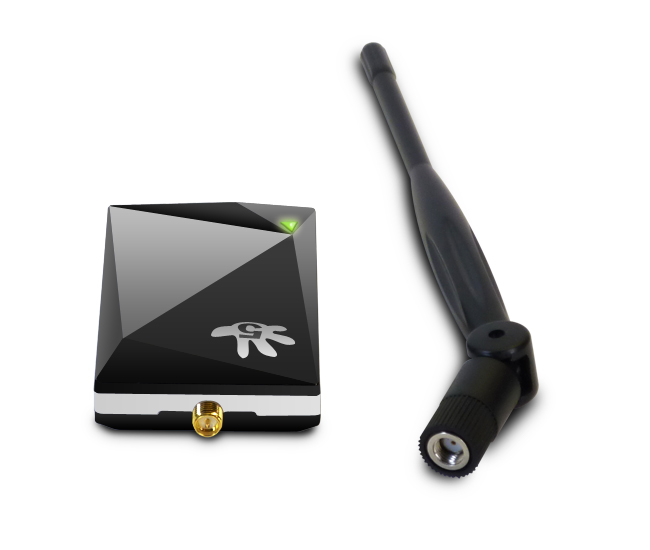

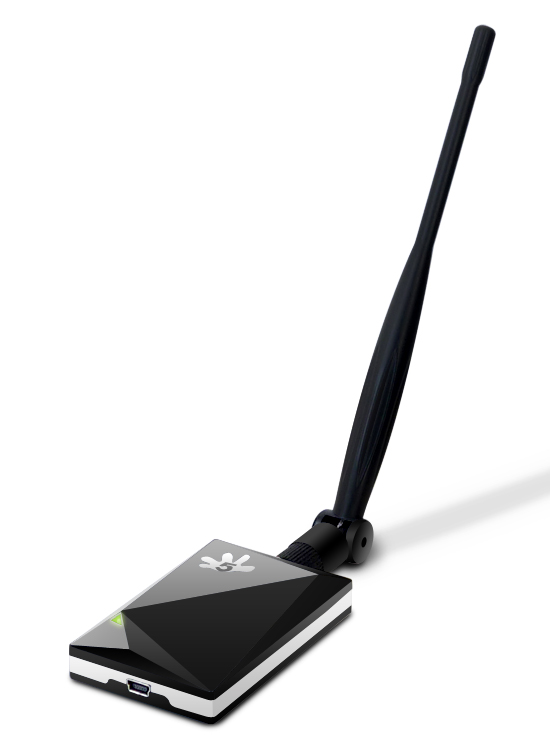

802.11b/g/n 1W High Power USB 2.0 Adapter w/Turbo Booster*
w/
28dBm w/High Gain 5dBi Dipole Antenna
Improving 3X Signal Reception and 10xSpeed
GM5 Utilities Included

Made in Taiwan

Model: Diamond
Part#:
ARG-1005

*Turbo Booster: The Turbo Booster works only with GM5. Please download FREE Turbo Booster here

What is the Turbo Booster? (PDF)














Overview:

      Introducing the all new innovative Give-Me-5 (GM5) solution allowing you to connect up to 5 different Networks simultaneously. By virtually bonding all the network connections into a single channel, you will have more bandwidth than ever before. Allowing you to stay constantly connected to the internet as well as increasing your internet speed. The internet speed limitation set by your ISP will become a thing in the past with the Give-Me-5 solution.

Features:

  • Aggregate multiple WAN connections using GM5 utility

  • Breaking bandwidth limitation of ISP

  • Higher capacity by combining multiple bandwidth

  • Accelerate download speed

  • Maximum bandwidth allocation among users

  • Combine with wired and/or wireless connections

  • Ensure a continuous connection

  • Supports BT4

Specification:

  • GM5 software utility included. Compatible with XP and 7 (Vista not supported)

  • Additional LAN adapter required to combine the bandwidth by using GM5.

  • Chipset: Ralink RT3070

  • Standard: IEEE 802.11b/g/n

  • Interface: USB 2.0 and 1.1 compliant

  • Antenna Type: RP-SMA 5dBi dipole antenna

  • Transmitter Power:

    • 802.11b: 28 ± 1.5dBm

    • 802.11g: 23 ± 1.5dBm

    • 802.11n: 23 ± 1.5dBm

  • Power consumption: Transmit<600mA. Receive<400mA

  • Operating Range: Up to 1000 meters (Depending on surrounding environment)

  • Frequency: 2.412~2.484GHz.

  • Modulation Method: IEEE 802.11b: DBPSK / DQPSK / CCK. IEEE 802.11g: BPSK / QPSK/ 16QAM / 64QAM

  • Data Transfer Rate: 802.11b: 1, 2, 5.5, 11Mbps. 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps. 802.11n: up to 150Mbps

  • Security: WEP (64/128bit). WPA, WPA-PSK, WPA2, WPA2-PSK, TKIP/AES

  • Operating Channel: Channel 1~11 (U.S. and Canada). Channel 1~13 (Europe and other regions)

  • CE FCC RoHS compliant

  • Dimension:

    • Antenna length: 191mm

    • USB Adapter: 85mm x 62mm x 32mm

    • USB Cable: 150cm (1.5 meters or 5 ft)

Package Content:

  • Wireless LAN USB Adapter

  • High Gain 5dBi Dipole Antenna

  • 5ft USB Extension Cable

  • Driver/Manual CD w/GM5 Utility

  • Bonus Turbo Booster (Available at www.premiertek.net under Support, #12.

Operating System:

  • Win XP/Vista 32/64-bit/7 (GM5 supports XP and 7 only)

  • Mac OSX

  • Linux Kernel 2.6.6 and after (Supports BackTrack 4)

Warranty: 1 year
