Standard

IEEE 802.11a

MAC/BB Processor

RT2880

Frequency Band

5GHz 11a ISM Band; 5.18GHz ~ 5.825 Ghz

Data Rate

802.11a: Up to 54Mbps

LED indicators

Power /Link/Ethernet

Ethernet interface

One 10/100 BASE-T RJ-45 Ethernet connector

Antenna

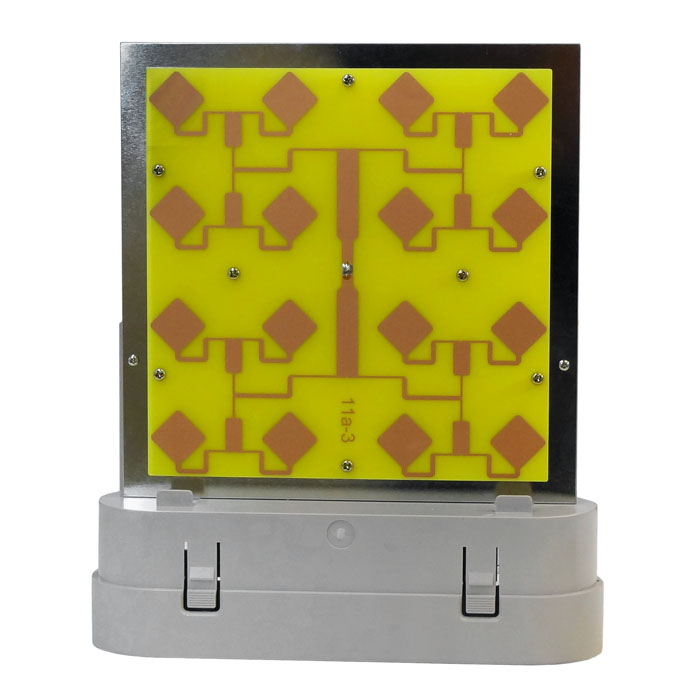

18dBi Internal patch antenna

Transmitter Power

802.11a：20±2dBm@54Mbps, 23±2dBm@6Mbps

Receive Sensitivity

-73dBm@54Mbps, -90dBm@6Mbps

Operating Range

Up to 3KM, depending on surrounding environment

Power Consumption

Transmit:<600mA, Receive:<300mA

Security

Wired Equivalent Privacy (WEP) data encryption

Dynamic WEP key exchange

WEP64/128, WPA, WPA2 802.1x

Power

12V, 1.25A / 1.5A through RJ-45 connector. Maximum input Voltage =40V

Dimension

259mm* 215mm* 98mm

Cast material

ABS

Operating Temperature

0~55 Celsius

Storage Temperature

-10 ~ 70 Celsius

Humidity

5~90%(non-condensing)
