Brand New

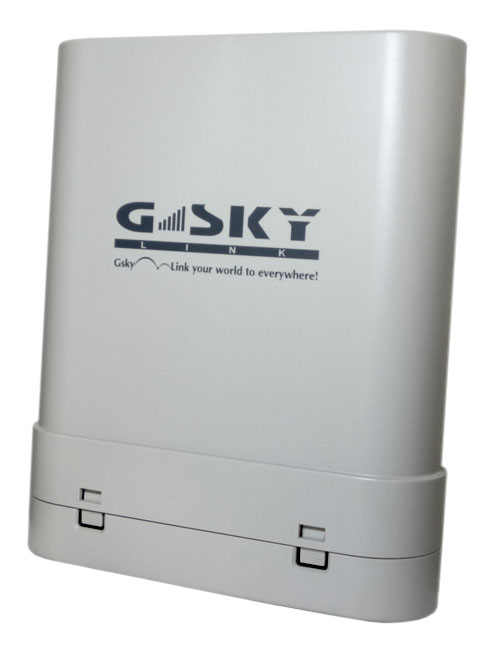

GSKY 802.11b/g Outdoor Wireless 1W 30dBm High Power CPE/AP/Router/Clint/Bridge/Repeater
w/14dBi Directional Panel Antenna
Up to 3 Miles
(Long Distance Wireless Lan Outdoor Integrated Solution)
|
|
Part#:
GS-CPE3014-1W
*CPE: Clint Premises Equipment
Description :
W-LAN Outdoor Application(all in one): 14dBi Panel Antenna &
Attached Plastic Housing + AP PCBA
Specification :
|
Model Name |
GS-CPE-3014-1W (1W) |
|
Chip set |
Realtek RTL8186 + RTL8305SC |
|
Ethernet Connection |
IEEE 802.3 100 BaseT (RJ45)
|
|
Standard |
802.11 b/g (Wirelree Lan)
IEEE 802.3 (Ethernet) |
|
Operation Modes |
AP Client Router, AP Router, AP
Bridge, PtP, and WDS Modes |
|
PoE Power Adapter |
48V/DC@ 400mA |
|
External PoE Injector |
IEEE 802.3 (Ethernet) |
|
Mounting |
Hose Clamp |
|
Enclosure |
WeatherProof Enclosure |
|
Integrated Antenna |
14dBi Panel Antenna |
|
Radio |
IEEE 802.11b/g |
|
Temperature |
-40 to +80℃ |
|
Humidity |
95% @ 55
℃ |
|
Radome Material |
ABS, UV resistant |
|
Dimension |
259 x 215 x 98 mm |
|
Lighting Protection |
PoE surge protector (option) |
|
Warranty |
1 Year |
|
Manual |
Manual CD |
|
Frequency Range |
2.412 GHz - 2.4835 GHz |
|
Frequency Band |
N. America / FCC : 2.412 ~ 2.462 GHz
(11 Channels)
Europe CE / ETSI : 2.412 ~ 2.472 GHz (13 Channels)
Japan : 2.412 ~ 2.484 GHz (14 Channels)
France : 2.457 ~ 2.472 GHz ( 4 Channels)
Spain : 2.457 ~ 2.462 GHz ( 2 Channels) |
|
Security |
64 bit/ 128 bit WEP, WPA, Port
Filtreing, IP filtering
MAC filtering, Port forwarding and DMZ hosting
|
|
Data Rate |
802.11b ( 11Mbps, 5.5Mbps, 2Mbps,
1Mbps)
802.11g ( 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps,
12Mbps, 9Mbps, 6Mbps) |
|
Transmit Power |
RF Output Power : < 30 dBm @802.11b/ 11Mbps |
|
Receiver Sensitivity |
-80dBm (11 Mbps), -66dBm (54 Mbps) |
|
Antenna Specification
|
14dBi Panel Antenna |
|
Frequency Range |
2400 ~ 2500 MHz |
|
Antenna |
|
Gain |
14dBi |
|
VSWR |
18 : 1 Max. |
|
Impedance |
50 Ohms |
|
Polarization |
Linear Vertical |
|
HPBW/ Horizontal |
30 |
|
HPBW/ Vertical |
30 |
|
Front Back Ratio |
14dB |
|
Power Handling |
50 Watts ( CW ) |
|
Survival Wind Speed |
216 Km/ Hr |
Package Contents:
- 14dBi Directional Panel
Antenna(PDF1/PDF2)
- 1W High Power AP (AP/Client/WDS)
- Power Adapter 48VDC@ 400mA
- PoE Base Unit
- Mounting Kit
- CD User Manual
|
|
Warranty: 1 year
|
|
