Brand New

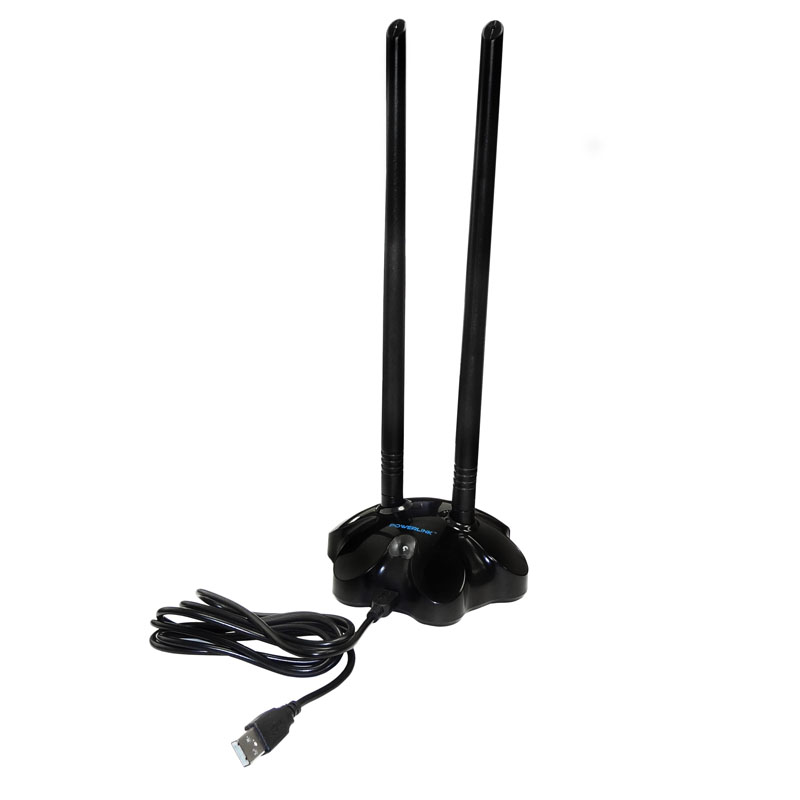

POWERLINK PL-14N
Wireless 802.11b/g/n High Power 150Mbps USB 2.0 Adapter
28dBm w/High Gain Dual 7dBi Dipole Antenna


Model: PL-14N





Overview:

The POWERLINK PL-14N is a powerful WLAN USB adapter w/dual 7dBi omni-directional antenna. Unlike other the 2dBi omni-direction antenna, the advantage of dual 7dBi omni-directional antenna and 1000mW high power output together can help the user to reach more wireless network that can't never be reached before with other wireless adapter. The PL-14N provides powerful and stable performance to PC & NB linked into unlimited wireless network. Upgrade your networking today and enjoy the faster speed internet experience.

Features:

  • 3X Performance (compare to a standard 2dbi antenna)

  • 3X Distance (compare to a standard 2dbi antenna)

  • 6X Signal Reception

  • Operating distance of up to 1500 meters

  • High power output technology

  • Detachable smart MIMO Antenna for long-range connectivity

  • WMM (Wi-Fi Multimedia) function support

  • Dual 7dBi swivel omni-directional high gain antenna

  • NDS and PSP X-link support

  • WiFi Direct support

  • USB extension cable

  • 256-bit WEP security

  • WPA, WPA-PSK, WPA2, WPA2-PSK

  • Design for indoor usage

Specification:

  • Chipset: Ralink RT3070

  • Standard: IEEE 802.11b/g, 802.11n draft

  • Interface: USB 2.0 and 1.1 compliant

  • Antenna Type: RP-SMA Male

  • Transmitter Power:

    • 802.11b: 28 ± 1.5dBm

    • 802.11g: 23 ± 1.5dBm

    • 802.11n: 23 ± 1.5dBm

  • Power consumption: Transmit<1000mA. Receive<600mA

  • Operating Range: Up to 1500 meters (Depending on surrounding environment)

  • Frequency: IEEE 802.11b: 2.4~2.497GHz. IEEE 802.11g: 2.4~2.4835GHz

  • Modulation Method: IEEE 802.11b: DBPSK / DQPSK / CCK. IEEE 802.11g: BPSK / QPSK/ 16QAM / 64QAM

  • Data Transfer Rate: IEEE 802.11b: 1, 2, 5.5, 11Mbps. IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps. 802.11n up to 150Mbps

  • Security: WEP (64/128bit). WPA, WPA-PSK, WPA2, WPA2-PSK, TKIP/AES

  • Operating Channel: Channel 1~11 (U.S. and Canada). Channel 1~13 (Europe and other regions)

  • FCC RoHS compliant

  • Dimension:

    • Antenna length: 11.2 inches

    • USB Adapter: 4.25x 4.25 x 1.8 inches

    • USB Cable: 15ft

Package Content:

  • Wireless LAN USB Adapter

  • 2 High Gain 7dBi Dipole Antenna

  • 15ft USB Extension Cable

  • Driver/Manual CD

Operating System:

  • Win 2000/XP/x64/Vista/7/8

  • Mac OSX 10.6/10.7/10.8

  • Linux Kernel 2.6.6 and after (Support BackTrack 3, 4)

  • Works with Raspberry Pi 1

Warranty: 1 year

Package info: 0.88lb. 12.5x5.9x2 (inches). 30pcs/box.
