Brand New

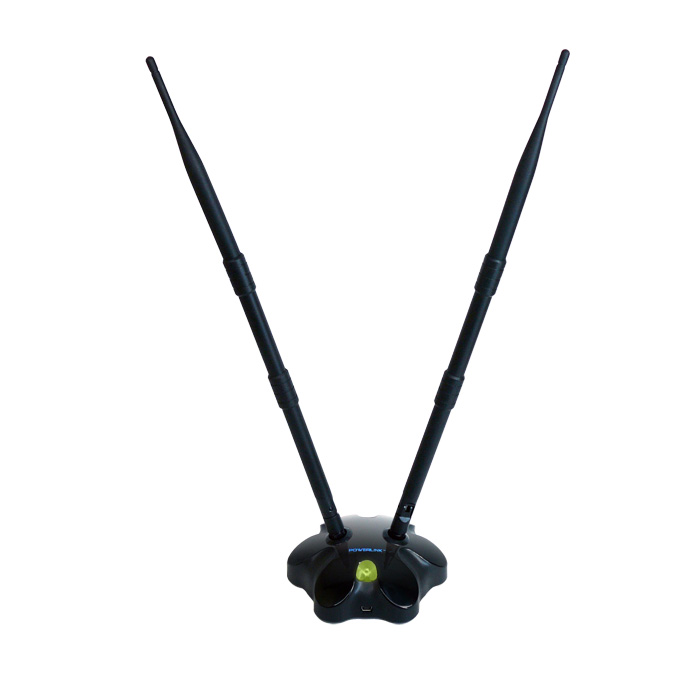

POWERLINK Hermes
Wireless 802.11b/g/n High Power 300Mbps 2T2R USB 2.0 Adapter
28dBm w/High Gain Dual 9dBi Dipole Antenna
Improving 10X Signal Reception and Speed


Model: Hermes
Part#: PL-18N




Overview:

The POWERLINK Hermes is a powerful WLAN USB adapter w/dual 9dBi omni-directional antenna. Unlike other the 2dBi omni-direction antenna, the advantage of dual 9dBi omni-directional antenna and 1000mW high power output together can help the user to reach more wireless network that can't never be reached before with other wireless adapter. The Hermes provides powerful and stable performance to PC & NB linked into unlimited wireless network. Upgrade your networking today and enjoy the faster speed internet experience.

Features:

  • 300% Performance (compare to a standard 2dbi antenna)

  • 300% Distance (compare to a standard 2dbi antenna)

  • Operating distance of up to 2000 meters

  • High power output technology

  • 2T2R 802.11n MIMO (Two Transmit and Two Receive path)

  • Smart MIMO Antenna for long-range connectivity

  • Transfer up to 300Mbps

  • WMM (Wi-Fi Multimedia) function support

  • Dual 9dBi swivel omni-directional high gain antenna

  • NDS and PSP X-link support

  • Software AP mode support

  • 256-bit WEP security

  • WPA, WPA-PSK, WPA2, WPA2-PSK

  • Design for indoor usage

Specification:

  • Chipset: Ralink RT3072

  • Standard: IEEE 802.11b/g/n

  • Interface: USB 2.0 and 1.1 compliant

  • Antenna Type: RP-SMA Jack

  • Transmitter Power:

    • 802.11b: 28 ± 1.5dBm

    • 802.11g: 23 ± 1.5dBm

    • 802.11n: 23 ± 1.5dBm

  • Power consumption: Transmit<1000mA. Receive<600mA

  • Operating Range: Up to 2000 meters (Depending on surrounding environment)

  • Frequency: IEEE 802.11b: 2.4~2.497GHz. IEEE 802.11g: 2.4~2.4835GHz

  • Modulation Method: IEEE 802.11b: DBPSK / DQPSK / CCK. IEEE 802.11g: BPSK / QPSK/ 16QAM / 64QAM

  • Data Transfer Rate: IEEE 802.11b: 1, 2, 5.5, 11Mbps. IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps

  • Security: WEP (64/128bit). WPA, WPA-PSK, WPA2, WPA2-PSK, TKIP/AES

  • Operating Channel: Channel 1~11 (U.S. and Canada). Channel 1~13 (Europe and other regions)

  • FCC RoHS compliant

  • Dimension:

    • Antenna length: 375mm

    • USB Adapter: 108mm x 108mm x 45mm

    • USB Cable: 300cm (3 meters or 9 ft)

Package Content:

  • Wireless LAN USB Adapter

  • 2 High Gain 9dBi Dipole Antenna

  • 3 Meter USB Extension Cable

  • Driver/Manual CD

Operating System:

  • Win 2000/XP/x64/Vista/7/8

  • Mac OSX 10.6/10.7/10.8

  • Linux Kernel 2.6.6 and after (Support BackTrack 3, 4)

  • Works with Raspberry Pi 1

Warranty: 1 year
