Brand New

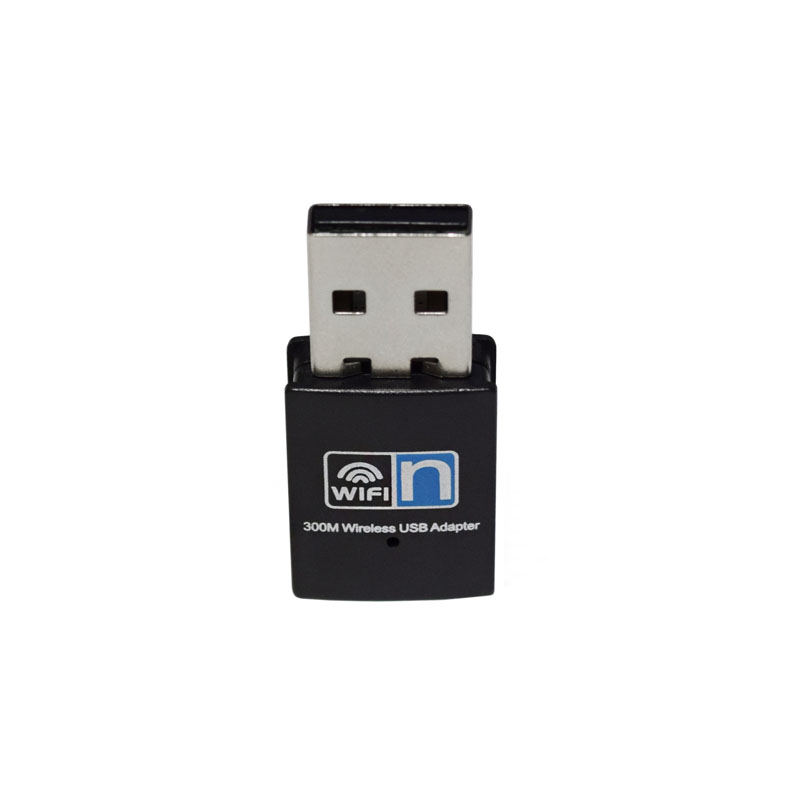

300Mbps Wireless-N 802.11n USB Adapter
Comply with 802.11N, 802.11g and 802.11b Standards



Part#: PL-8192CU

  • Works for Raspberry Pi









Overview:

The Nano USB WiFi adapter is a 802.11b/g/n WLAN USB adapter w/compact size design, It supports up to 300Mbps high-speed wireless network connections.

Features:

  • Supports 802.11e QoS Enhancement (WMM)

  • Supports 802.11h TPC, Spectrum Measurement

  • Supports 802.11i (WPA, WPA2). Open, shared key, and pair-wise key authentication services

  • Compact size

Specification:

  • RF Chipset: Realtek RTL8192CU

  • Standard: IEEE 802.11b/g/n

  • Interface: USB 2.0 and 1.1 compliant

  • Antenna Type: Internal

  • Power consumption: Transmit<305mA. Receive<190mA

  • Receive Sensitivity: -64dBm, 802.11n. -70dBm, 802.11g. -80dBm, 802.11b.

  • Operating Range: Up to 300 meters depending on surrounding environment.

  • Frequency: 2.412~2.484GHz ISM band

  • Channel: 1~13

  • Data Transfer Rate:

    • 802.11b: Up to 11Mbps.

    • 802.11g: Up to 54Mbps.

    • 802.11n: up to 300Mbps

  • Security: 64/128bit WEP (Hex&ASCII). WPA, WPA-PSK, WPA2, WPA2-PSK, TKIP/AES

  • CE FCC RoHS compliant

  • Dimension: 1.28(L) x 0.62(W) x 0.26(H) Inches

Package Content:

  • 802.11n Wireless LAN USB Adapter

  • Driver/Manual CD

Operating System:

  • Win XP/Vista 32/64-bit/ 7 32/64bit / 8 32/64-bit / 8.1 / 10

  • Linux Kernel 2.6.18~3.9

  • Android 1.6~2.3 and 4.0~4.2

  • Works with Raspberry Pi

Warranty: 1 year
