New

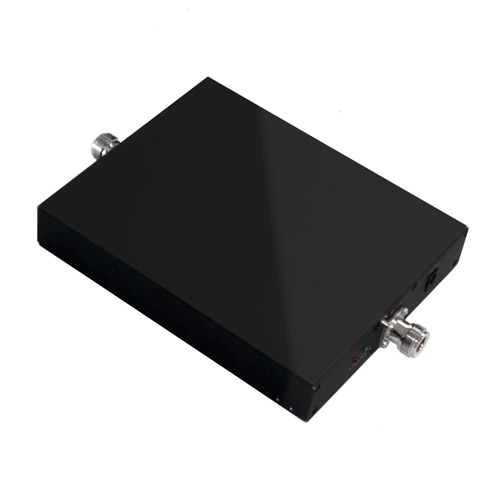

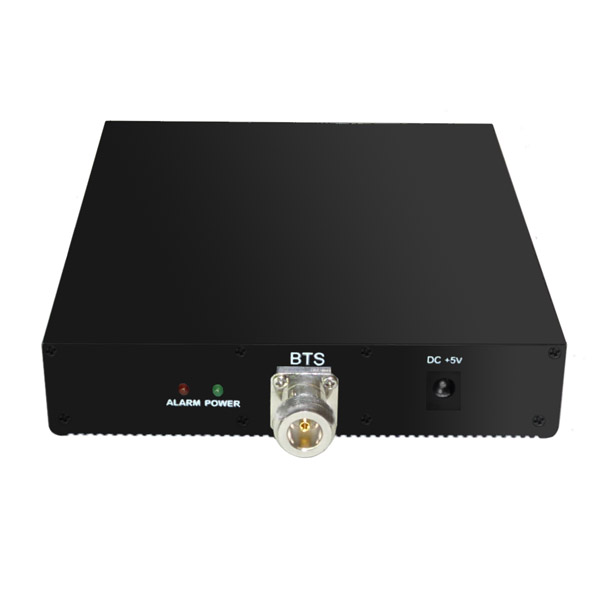

850 / 1900MHz Dual Band Cellular Signal Amplifier for Home and office

Part#: PL-SA8519-3







Overview:

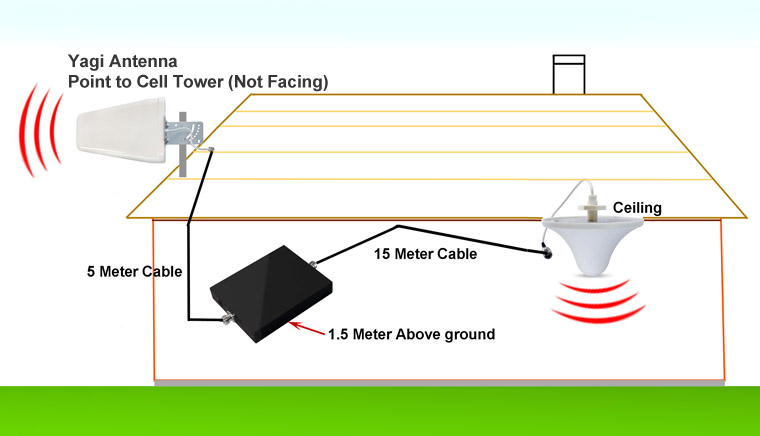

Now featuring adjustable gain to simplify installation! The cellular signal booster is dual-band (800 &1900 MHz) wireless amplifier for use in homes, offices and other buildings. It significantly improves voice and data performance for multiple cell phones and data cards simultaneously, and works with all major North American cell phone carriers, which include both Cellular (824-894 MHz) and PCS (1850-1990 MHz) carrier frequency bands. This 65 dB in-building booster combines high performance with ease of installation, and it can be used with an outside directional high gain antenna or omni-directional antenna with that eliminates researching cell tower locations and antenna orientation.

Features and Specs:

  • Greatly reduces dropped calls, extends signal range, and increases data rates

  • No physical connection to your cell phone or data card

  • Allows multiple phones and cellular data cards to be used simultaneously

  • Oscillation (or interference) detection and automatic shutdown with auto reset

  • Overload protection circuit – protects cell towers from being overloaded

  • Amplifies signals both to and from the cell tower

  • Automatic Level Control technology used to provide auto amplitude fixing

  • Maximum 2500 milliwatts output power - More than 20 times the power of your cell phone alone

  • Works on all generations of CDMA, TDMA, GSM, and 3G Networks

  • Extends phone battery life – Booster enables phone to work at reduced power

Amplifier Specifications:

Part#

PL-SA8519-3
Frequency 824-894 MHz / 1850-1990 MHz
Gain Uplink: 60 dB / Downlink: 65 dB
Output Power 23dBm
ALC 28dB
I/O Impedance 50 ohms
I/O Return Loss less than -8dB
Max Uplink Power 1140 mw / 1114 mw
Max Downlink Power 26 dBm / 25 dBm
Noise Figure 3.5 dB nominal
Band Flatness ±5dB
Power Requirements 110-240 V AC, 45-55 Hz, 8 W
Amplifier Connectors N-Female
Dimensions 6.2 x 4.2 x 1.5 (inches) / 15.7 x 10.7 x 3.8 (cm)
Weight 0.64 lbs / 0.29 kg

Kit Contents:

  • Dual Band Amplifier

  • AC Adapter

Warranty: 1 year
