Brand New in Retail Box

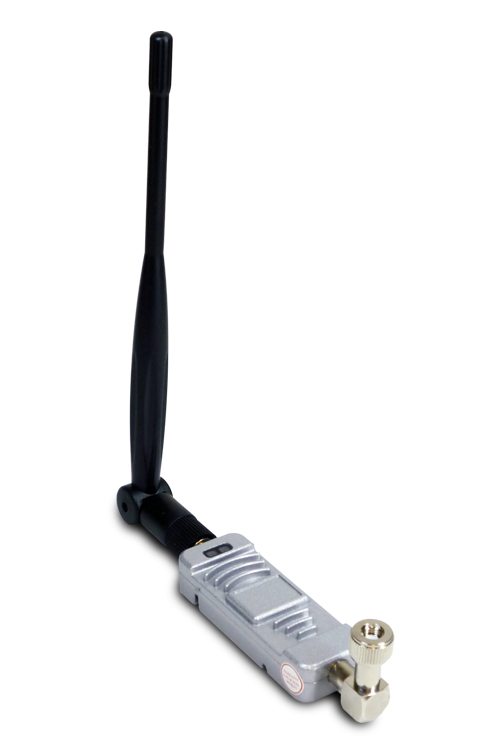

Indoor 500mW/25dBm 802.11b/g/n Fixed-Gain PEN Booster/Amplifier
w/5dBi Antenna
Signal up to 1200M (4000ft)
|
|
Model: PT-1115P
Description:

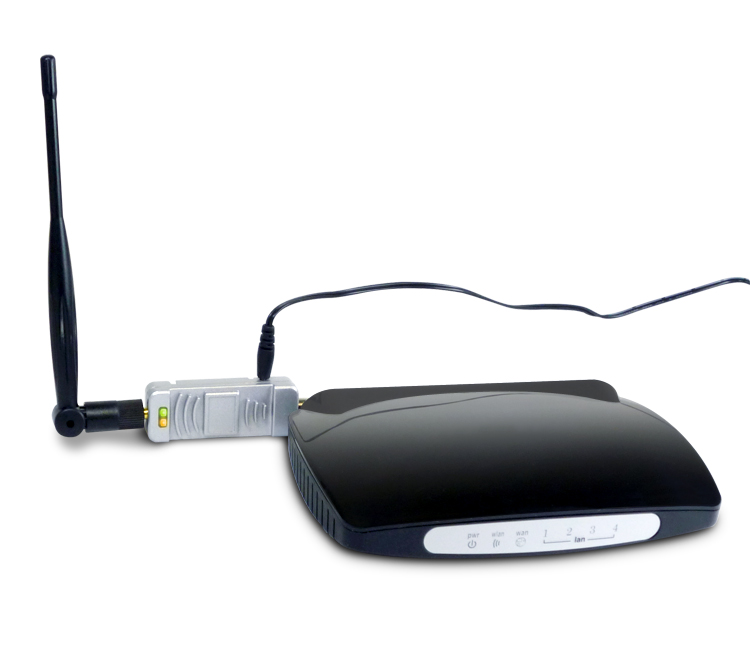

The PT-111P compact amplifier is an indoor solution
500mW
bi-directional booster designed for 2.4GHz wireless LANs. This amplifier comes with
an easy plug-and-play installation, which works together with an indoor Wireless
Access Point to improve its operation range and performance.
The unit is ideal for use with 2.4 GHz
frequency hopping or direct sequence spread spectrum radio modems and 802.11b/g/n devices.
The amplifiers increase range by providing
transmit gain as well as low-noise receive gain. This receive gain increases the
receive sensitivity of wireless LAN Access Point. Full output power of 500mW is
achieved with only 5mW input into the Booster.
Character:
-
Compact size
-
Cast aluminum construction
-
Power and transmit LEDs
-
15dB transmit gain (adjustable)
-
Lightning Protection
-
High Gain, High Value, High
Performance
-
Increase range of low powered
radio modems
Antenna
Specifications:
Booster Specifications:
|
Operation Range |
2400-2500 MHz |
|
Operating Mode |
Bi-directional, half-duplex,
Auto-Switching via carrier sensing |
|
Transmit Gain |
13~14dB |
|
RF Input Power |
0~15dBm |
|
RF Output Power |
500mW 27dBm |
|
Frequency Response |
±1dB over operation range |
|
Receiver Gain |
Less than
12dB |
|
Receive Noise Figure |
3.5dB typical |
|
Connector |
L-Type SMA receptacle (50 ohm) |
|
Power Adapter |
DC 5V /1A 105~240V
for AC Adapter |
|
Operating Temp. |
*-20 to + 70C |
|
Operating Humidity |
Up to 95% relative humidity |
|
Distance* |
Up to 1200M (4000ft) depends on
environment |
|
Dimension (cm) |
6.7 cm (L) x
2.5 cm (W) x 1.4 cm (H) |
|
Material |
Die Casting Aluminum |
|
Safety Certification |
FCC/CE/RoHS |

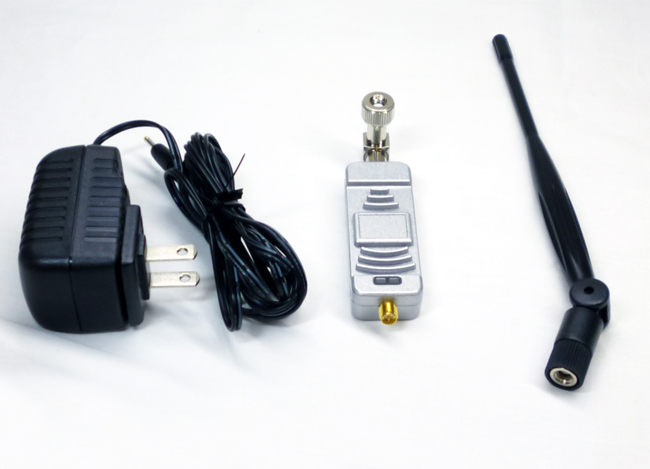

Package Content:
Warranty: 1 year
|
|
