Brand New
Wireless 300Mbps
802.11b/g/n MIMO USB 2.0 High-Gain Adapter 2T2R
Comply with 802.11n, 802.11g and 802.11b Standards
25dBm w/2 High Gain 5dBi Dipole Antenna
Improving 6X Signal Reception and 3x Speed
For PC, MAC and Linux

Made in Taiwan

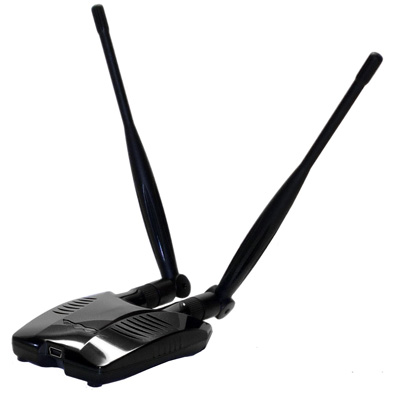

Model: PT-H10DN







The PT-H10DN is a powerful WLAN USB adapter w/2 5dBi antenna. The advantage of 2x5dBi antennas and 500mW high power output together can help the user to reach more wireless network that can't never be reached before with other wireless adapter. Not only the improvement of ultra range it performs, it also can increase the transmit and receipt speed. Thus the PT-H10DN provides powerful and stable performance to PC & NB linked into unlimited wireless network world. Upgrade your networking today and enjoy the faster speed internet experience.

Features:

  • 200% Performance

  • 200% Distance

  • High gain antenna detachable

Specification:

  • RF Chipset: Realtek RTL8192SU

  • Standard: IEEE 802.11b/g/n

  • Software AP supported

  • Interface: USB 2.0  and 1.1 compliant

  • Antenna Type: RP-SMA Jack

  • Transmitter Power:

    • 802.11b: 23 ± 2 dBm

    • 802.11bg: 18 ± 2 dBm

    • 802.11b: 17 ± 2 dBm

  • Power consumption: Transmit<500mA. Receive<300mA

  • Operating Range: Up to 500 meters (Depending on surrounding environment)

  • Frequency: IEEE 802.11b: 2.4~2.497GHz. IEEE 802.11g: 2.4~2.4835GHz

  • Modulation Method: IEEE 802.11b: DBPSK / DQPSK / CCK. IEEE 802.11g: BPSK / QPSK/ 16QAM / 64QAM

  • Data Transfer Rate: IEEE 802.11b: 1, 2, 5.5, 11Mbps. IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps. 802.11n: 20Mhz up to 144Mbps, 40Mbps up to 300Mbps

  • Security: 64/128bit WEP (Hex&ASCII). WPA, WPA-PSK, WPA2, WPA2-PSK, TKIP/AES

  • CE FCC RoHS compliant

  • Dimension:

    • Antenna length: 191mm

    • USB Adapter: 90mm x 65mm x 20mm

Package Content:

  • 802.11b/g/n Wireless LAN USB Adapter

  • 2pcs High Gain 5dBi Dipole Antenna

  • 5ft USB Cable

  • Driver/Manual CD

Operating System:

  • Win 7, XP, Vista 32/64-bit. 2000, ME, 98

  • Mac

  • Linux

Warranty: 1 year
