Brand New

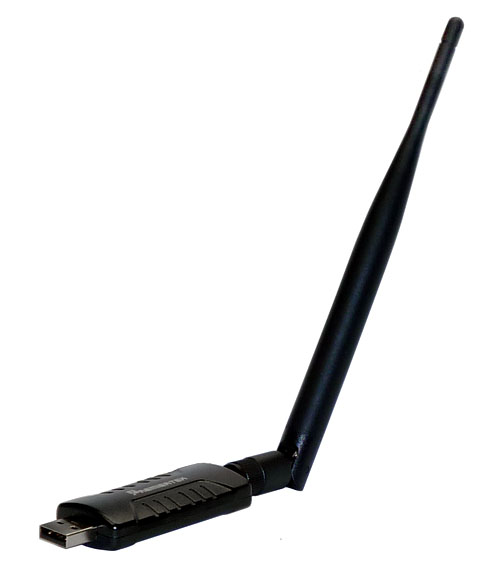

PremierTek PowerLink
Wireless
300Mbps
802.11n
USB 2.0 High-Gain Adapter
Comply with 802.11N, 802.11g and 802.11b Standards
22dBm w/High Gain w/5dBi Dipole Antenna
Improving 2X Signal Reception and Speed
Model: PT-H5DN
Overview:
The PowerLink is a powerful 802.11b/g/n WLAN USB adapter w/5dBi
antenna w/1T2R MIMO technology. It supports up to 300Mbps high-speed wireless
network connections. The advantage of 5dBi antennas and high power output together
can help the user to reach more wireless network that can't never be reached
before with other wireless adapter. Not only the improvement of ultra range it
performs, it also can increase the transmit and receipt speed. Thus the
PremierTek PowerLink
provides powerful and stable performance to PC & NB linked into unlimited
wireless network world. Upgrade your networking today and enjoy the faster speed
internet experience.
Features:
Specification:
-
RF Chipset: Realtek RTL8191SU
-
1T2R 802.11n MIMO (One Transmit and Two Receive
path)
-
Standard: IEEE 802.11b/g/n. 802.3, 802.3u
-
Software AP supported
-
Interface: USB 2.0 and 1.1 compliant
-
Antenna Type: RP-SMA Jack
-
Transmitter Power:
-
802.11b: 22 ±
2 dBm
-
802.11g: 19
± 2 dBm
-
802.11n: 19 ±
2 dBm
-
Power consumption:
Transmit<380mA. Receive<250mA
-
Operating Range: Up to 600
meters (Depending on surrounding environment)
-
Frequency: IEEE 802.11b: 2.4~2.497GHz. IEEE
802.11g: 2.4~2.4835GHz
-
Modulation Method: IEEE 802.11b: DBPSK / DQPSK /
CCK. IEEE 802.11g: BPSK / QPSK/ 16QAM / 64QAM
-
Data Transfer Rate:
-
802.11b: 1, 2, 5.5,
11Mbps.
-
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps.
-
802.11n: 20Mhz up to 144Mbps,
40Mhz up to 300Mbps
-
Security: 64/128bit WEP
(Hex&ASCII). WPA, WPA-PSK,
WPA2, WPA2-PSK, TKIP/AES
-
CE FCC RoHS compliant
-
Dimension:
Package Content:
Operating System:
-
Win XP/Vista 32/64-bit/7
-
Linux
Warranty: 1 year
|
|
