Brand New

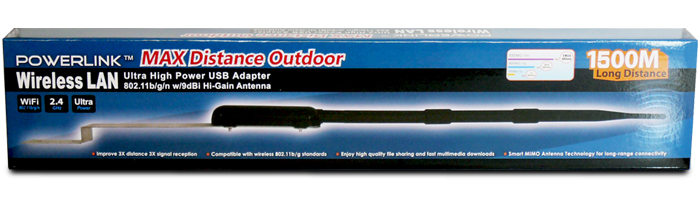

POWERLINK Max Distance Outdoor
High Power Wireless 802.11b/g/n USB 2.0 Adapter for Direct Mounting
Waterproof
High Power 1W 28dBm w/High Gain 9dBi Dipole Antenna
 Improving 3X Signal Reception and Speed


Model: Max Distance Outdoor
Part#: PT-H9DN-ROC




Overview:

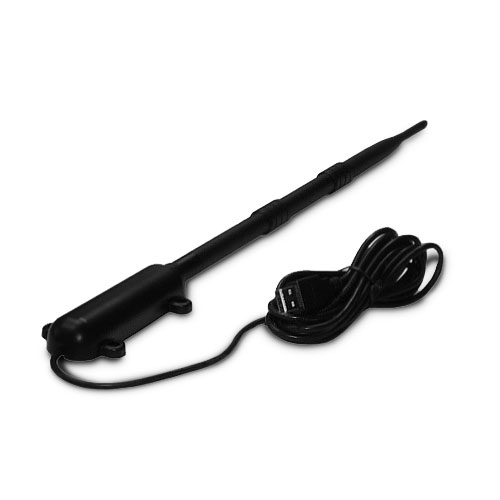

The Max Distance Outdoor is a powerful 80211b/g/n WLAN USB adapter w/9dBi omni-directional antenna. Unlike other the 2dBi omni-direction antenna, the advantage of 9dBi omni-directional antenna and 1000mW high power output together can help the user to reach more wireless network that can't never be reached before with other wireless adapter. The Max Distance Outdoor is waterproof, user can place for indoor or outdoor. The Rocket provides powerful and stable performance to PC & NB linked into unlimited wireless network world. Upgrade your networking today and enjoy the faster speed internet experience.

Features:

  • 1500 Meter Long Distance

  • 1W Ultra high power output

  • Waterproof design for indoor and outdoor usage.

  • 300% Performance (compare to a standard 2dbi antenna)

  • 300% Distance (compare to a standard 2dbi antenna)

  • Smart MIMO Antenna for long-range connectivity

  • WMM (Wi-Fi Multimedia) function support

  • 9dBi fixed omni-directional high gain antenna

  • NDS and PSP X-link support

  • Software AP mode support

  • 256-bit WEP security

  • WPA, WPA-PSK, WPA2, WPA2-PSK

  • Supports BT5

Specification:

  • Chipset: Ralink RT3070

  • Standard: IEEE 802.11b/g/n

  • Interface: USB 2.0 and 1.1 compliant

  • Antenna Type: Fixed 9dBi dipole antenna

  • Transmitter Power: 28 ± 1.5dBm (1000 mw)

  • Power consumption: Transmit<1000mA. Receive<600mA

  • Operating Range: Up to 1500 meters (Depending on surrounding environment)

  • Frequency: IEEE 802.11b: 2.4~2.497GHz. IEEE 802.11g: 2.4~2.4835GHz

  • Modulation Method: IEEE 802.11b: DBPSK / DQPSK / CCK. IEEE 802.11g: BPSK / QPSK/ 16QAM / 64QAM

  • Data Transfer Rate: 802.11b: 1, 2, 5.5, 11Mbps. 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps. 802.11n: up to 150Mbps

  • Security: WEP (64/128/256bit). WPA, WPA-PSK, WPA2, WPA2-PSK, TKIP/AES

  • Operating Channel: Channel 1~11 (U.S. and Canada). Channel 1~13 (Europe and other regions)

  • Operating Temperature: 0~55 Celsius

  • Storage Temperature: -20~70 Celsius

  • Humidity: 5~90%

  • CE FCC RoHS compliant

  • Weight: 146g

  • Dimension:

    • Antenna length: 36cm

    • Unit: 48cm(L)x3.5cm(W)x2cm(H)

    • USB Cable: 300cm (3 meters or 10ft)

Package Content:

  • Wireless LAN USB Adapter

  • High Gain 9dBi Dipole Antenna

  • Wall Mounting Kit

  • Driver/Manual CD

  • 1 Cable tie and 4 Screws

Operating System:

  • Windows Vista/7/8/8.1

  • Mac OSX 10.6/10.7/10.8/10.9 (download here)

  • Linux Kernel 2.6.6 and after (Support BackTrack 3, 4)

  • Works with Raspberry Pi 1

Warranty: 1 year
