Description:
Support Wired or Wireless Network
The print server can support 10/100Mbps Wired and IEEE
802.11g/b wireless network. Users can share the printer
and configure the print server either through wired or
wireless network.
Easy Installation and Configuration (with Web-Based
Configuration)
The print server's easy-to-use windows installation
wizard allow for quick installation and setup the print
server. The print server can also be conveniently
configured from any network client that support
web-browsing.
Support Peer-to-Peer and Server-Based Printing
Supports both Peer-to-Peer and Server-based printing.
LAN clients can connect directly with the print server
to execute printing jobs (Peer-to-Peer printing); or
clients can send print jobs first to a server (queuing
jobs) and allow the server to connect with the print
server to execute the printing jobs (Server-based
printing).
Provide Complete Printing Methods
The print server provides LPR, IPP, SMB/TCP, Raw
Printing and Unix Logical Printer printing methods. You
can choose the best printing method according to your
environment.
Supports Major Operating Systems
The print server is compatible with all major operating
systems used today, for example Windows
95/98SE/Me/NT/2000/XP/2003/Vista, NetWare (3.x above),
MAC OS and Unix/Linux environments.
Fault-Tolerant Firmware Upgrades
Users need not worry about errors occur in the midst of
an upgrade, thus preventing the print server from
operating. The print server's fault-tolerant upgrade
function allows for re-upgrades should problems occur
during the initial upgrade.
Character:
- Comply with IEEE
802.3, IEEE 802.3u Wired Ethernet and IEEE 802.11g/b
(2.4GHz) Wireless LAN standards.
- Support 10/100Mbps
speed in Wired Network and up to 54Mbps data rate in
Wireless Network.
- Provides one USB 2.0
port to connect to printer.
- Share printer with
USB port to all PCs through Wired or Wireless
Network.
- Supports TCP/IP, IPX/SPX,
NetBEUI and AppleTalk network protocols.
- Supports LPR, IPP,
SMB/TCP, Raw Printing and Unix Logical printing
protocols.
- Supports
Peer-to-Peer Printing (TCP/IP/IPX/NetBEUI/AppleTalk).
- Supports
Server-based printing (Novell NetWare and Windows).
- Compatible with all
major operating systems (Windows
95/98SE/Me/NT/2000/XP/2003/Vista, NetWare (3.x
above), MAC OS and Unix/Linux).
- Supports DHCP Server
and Client protocol.
- Supports Web-based
management and Windows Configuration Utility.
- Provides easy-to-use
installation and setup program.
- Supports
Fault-Tolerant Upgrade capability.
Specifications:
|
Product |
Wireless USB 2.0
Print Server |
|
CPU |
RISC CPU |
|
Flash |
1MB NOR Flash |
|
RAM |
8MB SDRAM |
|
Printer Port |
USB 2.0 Type A x
1 |
|
LAN Port |
10/100M UTP Port
x 1
(Auto-MDI/MDI-X) |
|
Antenna |
External 2dBi
Dipole Antenna |
|
Output Power |
16dBm-18dBm |
|
Power
|
5V DC, 1A Power
Adaptor |
|
Dimension
|
20(H) x 58(W) x
82(D) mm |
|
Temperature
|
0~55oC |
|
Humidity
|
10~90%
(Non-Condensing) |
|
Certification
|
FCC, CE |

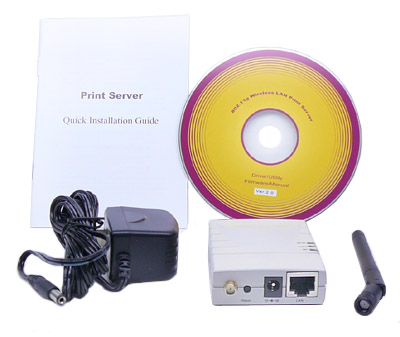

Package Contents:
-
WP-1000U Print Server
-
AC Adapter
-
CD Driver and Manul
Warranty: 1 Year |
