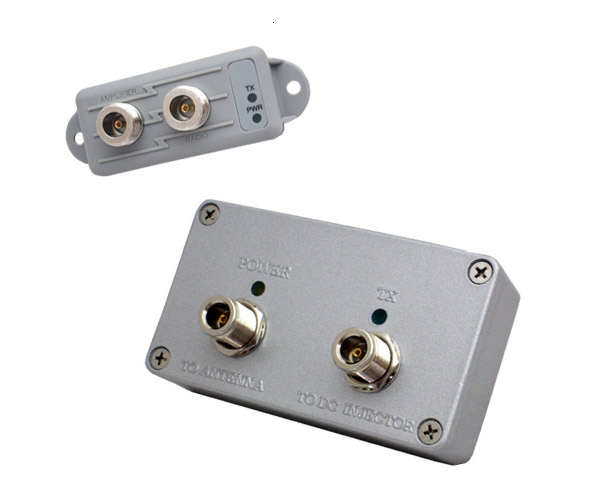

Model: WZ-2200-1W
Description:
WZ-2200-1W is an outdoor solution 1W
bi-directional Booster designed for 2.4GHz wireless LANs. This unit comes with
an easy plug-and-play installation, which works together with an indoor Wireless
Access Point to improve its operation range and performance.
The unit is ideal for use with 2.4 GHz
frequency hopping or direct sequence spread spectrum radio modems and 802.11b/g devices.
The amplifiers increase range by providing
transmit gain as well as low-noise receive gain. This receive gain increases the
receive sensitivity of wireless LAN Access Point. Full output power of 1W is
achieved with only 5 mW input into the Booster.
Character:
-
Cast Aluminum Construction
-
Power and transmit LEDs
-
15 dB receive signal gain
-
Lightning Protection
-
High Gain, High Value, High
Performance
-
Increase range of low powered
radio modems
Specifications:
|
Operation Range |
2400-2500 MHz |
|
Operating Mode |
Bi-directional, half-duplex,
Auto-Switching via carrier sensing |
|
Transmit Gain |
Auto Gain Control |
|
Output Power |
1W/27dBm nominal for 802.11g/54Mbps |
|
Frequency Response |
*+- 1dB over operation range |
|
Transmit Input Power |
Max. 100mW, Min 6mW |
|
Receiver Gain |
15dB typical |
|
Receive Noise Figure |
3.5dB typical |
|
Connector |
N-type female (50 ohm) |
|
Power |
Direct DC ground at antenna connector |
|
Distance* |
Up to 2500M (8250ft) depends on
environment |
|
Dimension (cm) |
Amplifier: 11.5cm(L) x 6.5cm(W) x 4.8cm(H)
DC Injector: 7.8cm(L) x 5.6cm(W) x 2.9cm(H) |
|
Material |
Die Casting Aluminum |
|
Safety Certification |
FCC/CE/VCCI |
Package Content:
-
1W Booster/Amplifier
-
DC Injector (48V)
-
AC Adapter
-
SMA Male RP to N male RG316 cablex1
-
Mounting Kits
-
Manual
-
RG-213 Cable NOT included
(sold separately)
-
Antenna NOT included (sold
separately)
Warranty: 1 year
|
